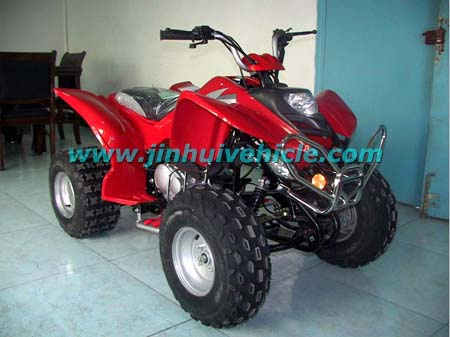

ATV Scooter (JH-ATV03)

Specifications

Prod Model:	JH-ATV03

Product Description

Engine: 150cc
Parameter of Engine
Engine Model: 162FMJ
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Ignition: C. D. I.
Lubrication: Pressure/ Splash
Max. Power: 9. 5/8000+150(Kw/r/min)
Max. Torque: 10. 5/6000+150(N. M/r/min)
Impression Ratio: 8. 8: 1
Starting Type: Electric
Max. Speed: 55(Km/H)
Oil Consumption: <365(g/Kw/H)
Max. Noice: 80dB
Clutch
Transmission: 5 speed, Rotary 3 Forward Gear and 1 Reverse Gear
Parameter of Motorcycle
Dimension: 1500x850x960(LxWxH mm)
Wheel Base: 1050mm
Gross Weight: 145Kg
Dry Weight: 125Kg
Transmission Type: Chain
Tyre and Rim F.: 19x7-8 / R.: 18x9. 50-8
Brake Style F. Drum / R. Dick
Absorber Style F.: Independent Hanging / R.: Middle Absorber
Displacement: 149. 5ml
Oiltank Capacity: 4. 5L
Climbing Ability: >25'
Max. Load: 95Kg
Packing Vol: 1480x835x760(LxWxH mm)
Container Capacity 40': 66Unit 20': 33Unit
