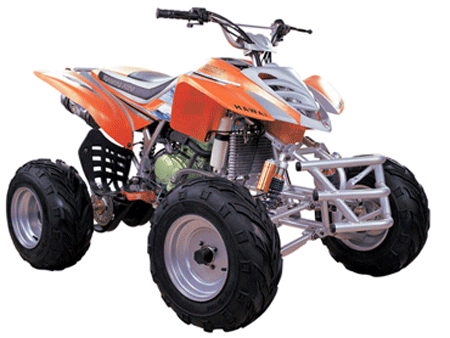

ATV (QY200ATV-H)

Specifications

Product Description

1) Dimensions (L x W x H): 1,890 x 1,040 x 1,060mm
2) Wheel base: 1,180mm
3) Engine type: single cylinder, air-cooling, 4-stroke
4) Start mode: electric
5) Power: 10kW/7,500rpm
6) Max. torque: 13.5Nm/6,500rpm
7) Max. speed: ≥60km/h
8) Min. ground clearance: 135mm
9) Dry weight: 230kg
10) Transmission mode: chain
11) Break type (F/R): drum/drum
12) Power source: 12V, 10Ah
13) Climbing degree: ≥25'
14) Fuel tank capacity: 8.9L
15) Front hanging: arm-swing
16) Rear hanging: integral
17) Tires:
a) Front wheels: 23 x 7 - 10
b) Rear wheels: 22 x 10 - 10

18) Cylinder size: 63.5 x 62.2mm
19) Displacement: 196.98mL
20) Transmission: 5 gears, manual clutch
21) Height of seats: 750mm
22) Min. turning radius: 2,900mm
23) Parking trig: mechanical lock
24) Ignition mode: CDI
25) Load capacity: 160kg
26) Engine oil: 1.1L
27) Gear oil: 0.3L
28) Max. number of riders: 1
29) Lubrication: press splash
30) Compression proportion: 9.2:1
31) Gas cylinder number: 1

Outer packing:
Dimensions: 1,940 x 1,060 x 870mm

Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 24 units
Qty/40' HQ: 36 units
