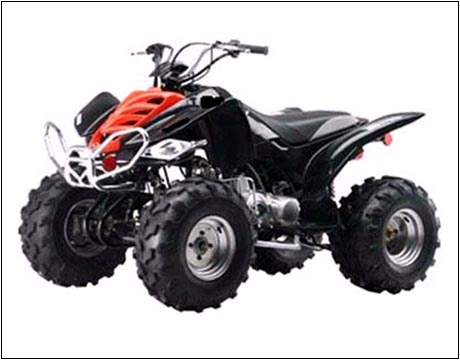

Home China Xinsheng Group Co., Ltd. ATV Quads (XS-ATV006)
Specifications
| Prod Model: | XS-ATV006 |
|---|
Product Description
XS-ATV006Engine Model 1P57QMJ
Engine Style Single Cylinder, Air-cooled, 4-stroke
Bore × Stroke 57.4*57.8 (mm *mm)
Ignition C.D.I.
Lubrication Pressure/Splash
Max. Power 7.0/7000+-150 (Kw/r/min)
Max. Torque 8.8/5500+-150 (N.m/r/min)
Impression Ratio 8.8 : 1
Starting Type Electric
Max. Speed 55( Km/H )
Oil Consumption ≤365 (g/Kw. H)
Max. Noice 80( dB )
Clutch
Transmission CVT
Parameter of Motorcycle
Dimension 1625×860×960 (L*W*H mm)
Wheel Base 1050 (mm)
Gross Weight 145 (Kg)
Dry Weight 125 (Kg)
Transmission Type
Tyre and Rim F. : 19*7-8/R. : 18*9.50-8
Brake Style F. Drum/R. Dick
Absorber Style F.: Independent Hanging/R.: Middle Absorber
Displacement 149.5ml
Oiltank Capacity 7.5 (L)
Climbing Ability ≥25"
Max. Load 95 (Kg)
Packing Vol, 1485*835*780 (L*W*H mm)
Container Capacity 40' : 66 Unit 20': 30Unit
