Home Hongkong Kaiwei Group Co.,Ltd. ATV&Quad

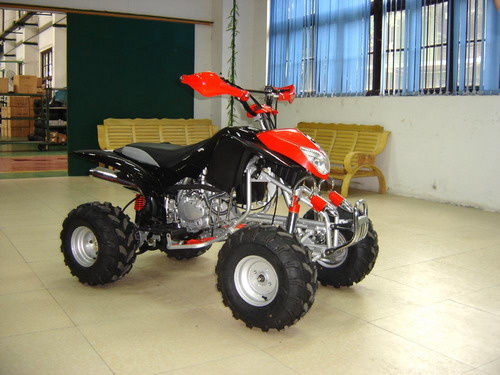

ATV&Quad

ATV&Quad
Price: Negotiable
Min Order: 1

Specifications

Prod Model: ATV200CC

Product Description

Wheel Base(mm): 1130
Engine Type: Single Cylinder; Water-cooling; Four stroke
Start Mode: Electric
Power (Kw/r/min): 10.5Kw/7500r/min
Max Torque (N. M/r/min): 15N. M/5500r/min
Max Speed(km/h): ≥50
Mini Ground Clearance (mm): 140
Dry Weight(Kg): 145
Transmission Mode: Chain
Break Type(F/R): Drum/Disc
Specification: 12V9Ah
Climb Degree: ≥25
Tank Capacity (L): 4
Front Hanging: Arm-swing
Rear Hanging: Integral
Specification of tyre: Front-wheel drive: 19*7-8
Rear wheel: 18*9.5-8
Cylinder Diameter*Journey(mm): 63.5*62.2
Displacement (ml): 196.9
Shift Gear: Five Gear, with reverse gear, manual cluch
Height of seats(mm): 700
Mini Turning radium(mm): 2400
Parking Trig: Mechanic Lock
Ignition Mode: C. D. I
Loading Capacity(kg): 200
Engine Oil (L): 1
Gear Wheel oil (L): 0.2
Person: 1
Lubrication: Press Splash
Compression Proportion: 10: 01
Gas Cylinder number: 1
Parking Dimension(mm): 1485*835*770
Quantity of loading: 20'GP: 29 units 40' HQ: 64 units 40' HQ: 66 units
