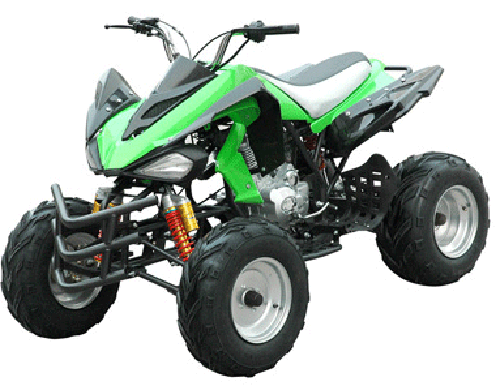

Home Zhejiang Pailision Industry Co., Ltd. ATV / Quad (WJ250ST-6)
Specifications
| Prod Model: | WJ250ST-6 |
|---|
Product Description
1). Dimentsions(L*W*H): 180*112*113CM2). Wheelbase: 115cm
3). Engine type: 250cc, single cylinder, air-cooling, 4-stroke
4). Start mode: Electric
5). Power: 10.3kw/7, 500 rpm
6). Max. Torque: 15N. M/6000rpm
7). Max. Speed: 75km/h
8). Min. Ground clearance: 120mm
9). Dry weight: 155kgs
10). Transmission mode: Chain
11). Break type(F/R): Disc/disc
12). Power source: 12v, 9A
13). Climbing degree: 20 degrees
14). Fuel tank capacity: 4L
15). Front hanging: Integral ballonet absorber
16). Rear hanging: Inner ballonet absorber
17). Tires: A) front wheels: 21*7-10
B) rear wheels: 20*10-10
18). Cylinder size: 63.5*62.2mm
19) displacement: 250ml
20) transmission: 4gears with one reverse gear, manual clutch
21) seat height: 880mm
22) min turning radius: 2, 650mm
23) parking trig: Mechanical lock
24) ignition mode: CDI
25) load capacity: 150kg
26) engine oil: 1.1L
27) gas cylinder number: 1
28) max. Number of riders: 1
29) lubrication: Press splash
30) compression proportion: 9: 2: 1
31) outer packing:
Carton dimensions: 148*95*88cm
Conveyance: Qty/20'GP: 20 units
Qty/40'GP: 44units
Qty/40'HQ: 66units
