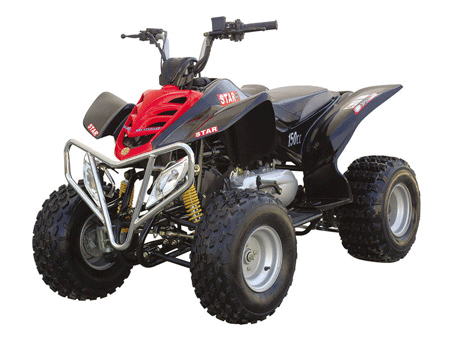

ATV/Quad (WJ150ST-2)

Specifications

Prod Model:	WJ150ST-2

Product Description

Engine:GY6 engine, 4-stroke, one cylinder, air-cooled
Engine displacement (cc): 149.6
Bore x Stroke (mm): 52 x 49.5
Max Power (KW / (r/min)): 6.1/8000
Max Torque (N.m / (r/min)): 8.3/7000
Compression Ratio: 9.1:1
Max speed: 70km/h
Start mode: electric start
Transmission mode: chain
Shift speed type: CVT
Brake system (front/rear): Drum / Disk
Tire Size (front / rear): 19 x 7-8 / 18 x 9.5-8
Front suspension: double A swing arm
Rear suspension: monoshock swing arm
Dimension (L x W x H)(mm): 1585 x 980 x 1010
Seat Height(mm): 670
Load capability: 100kg
Ground Clearance(mm): 120

Outer packing:
Carton dimensions(mm): 1470 x 850 x 710
N.W.: 135kg
G.W.: 155kg

Conveyance:
Qty/20' FCL: 29pcs
Qty/40' FCL: 64pcs
Qty/40' HQ: 66pcs
