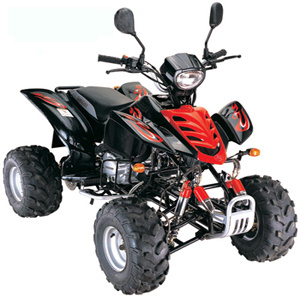

ATV Quad (BD110ST-6)

Specifications

Prod Model:	BD110ST-6

Product Description

ATV QUAD, quad bike, EEC ATV with 110cc engine
ATV Quad, EEC/COC Certificate, 4-stroke, Air-Cooled engine, Chain Drive, Popular Raptor, MODEL NO.: BD110ST-6
Cylinder Arrangement: Single Cylinder
Transmission System: Chain Drive
Bore x Stroke (mm): 52.4 x 49.5 / Piston Displacement (cc): 107
Compression Ratio: 9.1: 1 / Maximum Power (kw/r/min): 5.5/8000
Maximum Torque (N. M. /rpm): 6.5/5750
Starter System: Electric Starter / Lubrication: Auto
Transmission: 4 Speed, Semi Automatic
Overall Size: L1540 x W860 x H950mm
Wheel Base (mm): 1040 / Seat Height (mm): 670
Min. Turning Radius (mm): 2400 / Ground Clearance (mm): 100
Rider Capacity: 1 Person / Dry Weight (kg): 130
Brake (Front/Rear): Drum/Disk
Tyre, Front: 19x7-8/2.9Psi / Tyre, Rear: 18x9.5-8/2.9psi
Ignition Type: C. D. I. / Fuel Tank Capacity (L): 7.8
Engine Oil Capacity (L): 0.95 / Gear Oil Capacity (L): 0.12
Front Suspension: Swing Arm /Rear Suspension: Monoshock Swing Arm
Parking Brake: Mechanical Lock
Max. Load Capacity (kg): 95 / Max. Speed: 50 / Battery: 12V-9Ah
