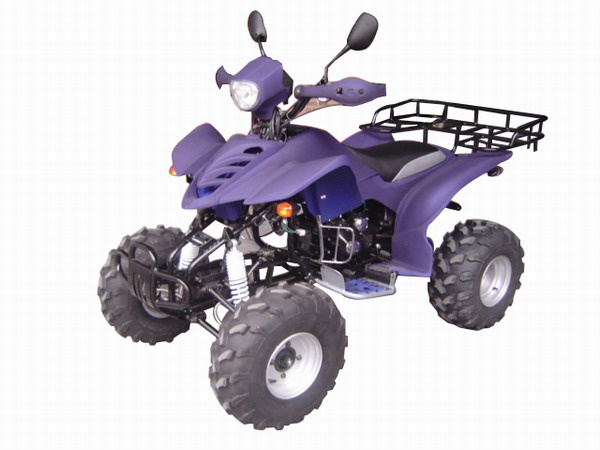

Home Sunrise Sanhuan Mechanical And Electrical Company ATV (QH200ST-V(A))
| Prod Model: | QH200ST-V(A) |
|---|
Product Description
L*W*H(mm): 1690*1014*1130Wheel Base (mm ): 1178mm
Wheelspan (mm): 756mm
Vehicle Dry Mass: 156kg
Rated Loading: 260kg
Max. Speed: 70
Wheel Rim Type (Front/Rear) Double-plated
Tyre Spec. (Front/Rear) 19*7-8 31N/MT5. 5 18*9. 60-8 31N/MT7. 5
Engine
Model QH163ML
Type Single cylinder, Air-cooled, four-stroke
Manufacturer Hi-Bird
Bore x Stroke mm 63. 5*49. 5
Work Capacity ml 197ml
Compression Ratio 9. 2: 1
Rated Power/Revolution KW/(r/min): 10. 8/7500
Max. Torque/RevolutionN. M/(r/min): 13. 6/6500
Min. Idle Revolution r/min: 1400
Min. Fuel Consumption g/(KW/h): 354
Starting Mode: Electric start-up
Ignition CDI electric ignition
Conveyance:
QTY/20'GP: 30 QTY/40'GP: 66 QTY/40'HQ: 66
We are a diversified enterprise merging gasoline engine, motorcycle, ATV, dirt bike, scooter manufacturing, development and research, production, marketing and import and export business into an organic whole.
The company fixes its position with higher-start market and develops steadily. It has advanced research and test equipment for motorcycles and wngines and has imported a complete set of software for product development. Its factory covers an area of 30000 square meters and has the annual production capacity of 800000 motorcycle engines and 400000 motorcycles.
The company fixes its position with higher-start market and develops steadily. It has advanced research and test equipment for motorcycles and wngines and has imported a complete set of software for product development. Its factory covers an area of 30000 square meters and has the annual production capacity of 800000 motorcycle engines and 400000 motorcycles.
