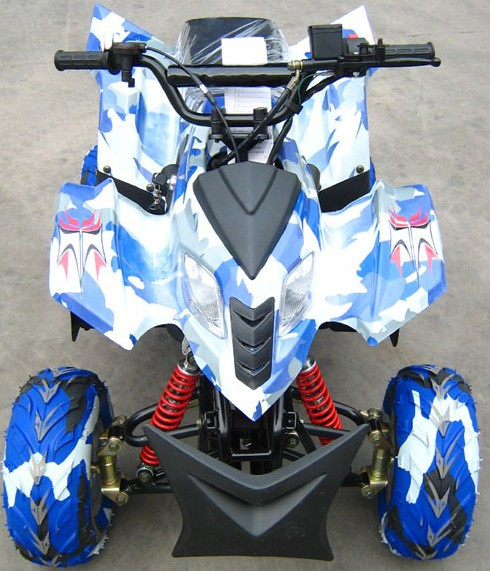

Home Yongkang Jiuzhou Vehicle Industrial And Trading Co., Ltd. ATV (JZ-AT90H)
Specifications
| Prod Model: | JZ-AT90H |
|---|
Product Description
JZ-90HEngine: 90cc, single cylinder, air cooling, 4 Stroke
Seat height: 590 mm
Wheel base: 830mm
Ground clearance(mm): 64mm
Max. Power(Kw/rpm): 4.0kw/7500-8000r/min
Max. Torque(Nm/rpm): 5.6kw/5000-6000r/min
Max. Speed(: 75km/h
Start system: Electric start
Tank capacity: 3.2L
Transmission: Chain
Rear brake: Disc brake
Ignition: CDI
Tire Size: 16x8-7(F) 16x8-7(R)
Length. Width. Height: 1360? 20? 60mm
N. W. /G. W.: 96/123kg
Carton size: 1330x770x630mm.
