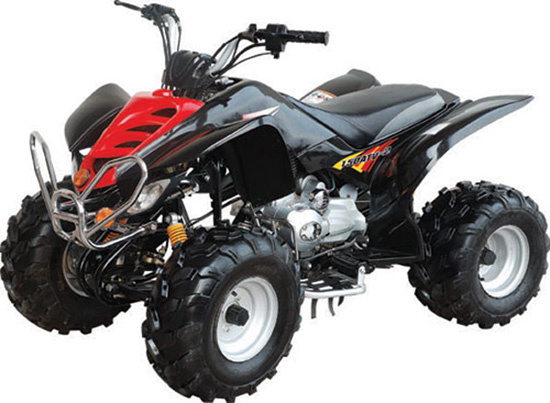

ATV (JX-OO2)

Specifications

Prod Model:	JX-OO2

Product Description

Feature:
1)Size of engine: 149.5cc/4 stroke/single cylinder/air cooled
2)Transmission system: Chain drive
3)Bore x stroke (mm): 46.3 x 57.8
4)Compression Ratio: 9.2: 1

5)Maximum Power (kw/r/min): 5.25/7500
6)Maximum Torque (N. M. /rpm): 6.5/5750
7)Starter System: Electric Starter
8)Lubrication: Auto

9) Transmission: 4 speed, semi automatic
10)Overall dimensions (LxWxH): 1610 x 900 x 1030mm
11)Wheelbase: 900mm
12) Rim type: Spoke/alloy

13)Min. Turning Radius (mm): 2000
14)Ground Clearance (mm): 100
15)Rider Capacity: 1 Person
16)Net Weight (kg): 150

17)Brake: Front drum, rear disc
18) Tyre size: Front-19-8; Rear-18.5-8
19)Ignition Type: C.D.I.
20)Fuel Tank Capacity: 7.8L

21)Engine Oil Capacity: 0.9L
22)Gear Oil Capacity: 0.12L
23)Suspension: Front-independent; Rear-monoshock swing arm
24)Load Capacity: 100kg

25)Max. Speed: 60KM/H
26)Battery: 12V-9Ah

Packing: Iron and seven-layer carton

Carton Size: 138x82x85cm

N.W/G. W.: 132/144gs

Container Qty: 20' FCL: 30pcs

40HQ: 66pcs
