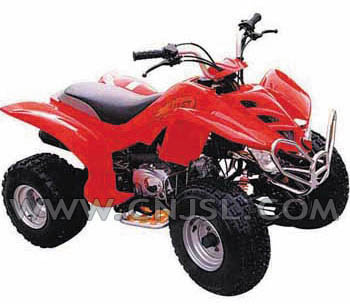

Home Zhejiang Yongkang Nine-Colordeer Vehicle Factory ATV (JSL-ATV010)
Specifications
| Prod Model: | JSL-ATV010 |
|---|
Product Description
Overall Dimension: 1540*860*950MMWheelbase: 1040MM, seat height: 670MM
Min Ground Clearance: 100MM
Min Turning Radius: 2400 MM
Dry Weight: 116kg (256 lbs)
Engine Description 4 Stroke, Single Cylinder, Air Cooling
Displacement: 107ml
Bore & Stroke 52.4*49.5MM
Starting System: Electric
Fuel Tank Capacity 7.8L
Front tires: 19*7-8/2.9psi
Real tires: 18*9.50-8 /2.9psi
Compression ratio: 9.6:1
Brake: Drum rider capacity: 1 person
Maximum Speed (road) km/h: 40KM/h
Max load Capacity: 95kg(209lb)
Engine oil capacity: 0.95L Gear oil capatity: 0.12
Transmission: Shaft drive
Front suspension: Leading arm, real supension: Swing arm
Battery: 112V-7A
Carton size: 1500x835x760(LxWxH mm)
40' container: 63sets, 20' container: 27sets
