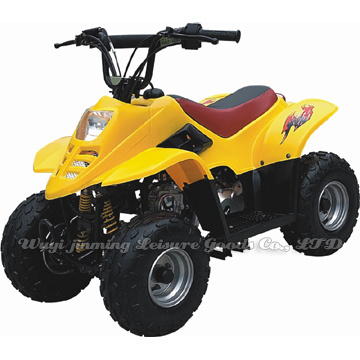

Home Zhejiang Wuyi Jinming Leisure Goods Co., Ltd. ATV (JM-ATV06)
Specifications
| Prod Model: | JM-ATV06 |
|---|
Product Description
Product size: 1230 x 660 x 860Engine: 70cc Single cylinder, air-cooled 4-stroke.
Bore X Stroke(mm): 47*41.4mm
Starting: Electric Start
Battery: 12V/7AH
Max power: 3.2kw/8000/min
MaxTorque(N. M. /r/min): 4.2N. M/7500r/min
Compressionratio: 8.8£º1
Ignition Type: C. D. I
Tank: 3.4L
Drive system: Chain
Transimmission: ¡¡ Fully Auto Clutch or 5 Speeds Semi Auto adjustable
Wheel size: ¡¡ 145/70-6, 145/70-6
Wheel base: 830mm
Ground clearance: 70mm
Brake(Front/Rear): Rear disk
Turning radius: 1550mm
Maximum gradient: 15¡ã
Max. Speed: 40km/hr approx
Max. Load: 100kgs
G. W. /N. W. (kg): 97/81
Carton Size: 125x74x66cm
Container: ¡¡ 39pcs/20FT, 84pcs/40FT, 108pcs/40HQ
COLOR: Yellow, green, blue, black, red.
