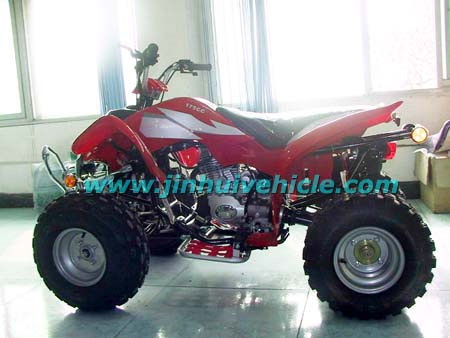

Home Yongkang Jinhui Vehicle Co., Ltd. ATV (JH-ATV05)
Specifications
| Prod Model: | JH-ATV05 |
|---|
Product Description
Engine: 150ccParameter of Engine
Engine Model: 162FMJ
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Ignition: C. D. I.
Lubrication Pressure/ Splash
Max. Power: 9. 5/8000+150Kw/r/min
Max. Torque: 10. 5/6000+150N. M/r/min
Impression Ratio: 8. 8: 1
Starting Type: Electric
Max. Speed: 55Km/H
Oil Consumption: <365g/Kw/H
Max. Noice: 80dB
Clutch
Transmission 5 speed, Rotary 3 Forward Gear and 1 Reverse Gear
Parameter of Motorcycle
Dimension: 1500X850X960 (L×W×H mm)
Wheel Base: 1050mm
Gross Weight: 145Kg
Dry Weight: 125Kg
Transmission Type: shaft
Tyre and Rim F.: 19×7-8 / R.: 18×9. 50-8
Brake Style F. Drum / R. Dick
Absorber Style F.: Independent Hanging / R.: Middle Absorber
Displacement: 149.5ml
Oiltank Capacity: 4.5L
Climbing Ability: >25°
Max. Load: 95Kg
Packing Vol: 1480X835X760LXWXH mm
Container Capacity 40': 66Unit 20': 33Unit
