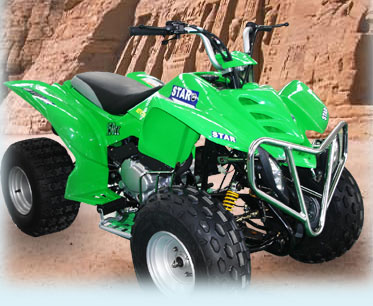

Home Yongkang Golden Horse Industry & Trade Co., Ltd. ATV (GH-ATV150-1)
Specifications
| Prod Model: | GH-ATV150-1 |
|---|
Product Description
Length * Width * Height (mm):1620*920*950Wheel Base(mm):1090
Engine Type:Single Cylinder, Compeled Air-cooling,Four stroke
Start Mode:Electric/Electric kick
Power (Kw/r/min):5. 2Kw/7500r/min
Max Torque (N. m/r/min):8. 5N. m/6000r/min
Max Speed(km/h): ≥45
Mini Ground Clearance (mm):120
Dry Weight(Kg):140
Transmission Mode:Chain
Break Type(F/R): Drum/Disc
Specification:12V9Ah
Climb Degree:≥20ºC
Tank Capacity (L):6. 6L
Front Hanging: Arm-swing
Rear Hanging : Integral
Specification of tyre:Front-wheel drive: 19*7-8
Rear wheel: 18*9. 50-8
Cylinder Diameter*Journey(mm):57.4*57.8
Displacement (ml): 149.65
Shift Gear:CVT
Height of seats(mm): 760
Mini Turning radius(mm): 2400
Parking Brake:Mechanic Lock
Ignition Mode:C.D.I
Loading Capacity(kg):130
Engine Oil (L):0.93
Gear Wheel oil (L):0.11
Rider Capacity:1
Lubrication: Press Splash
Compression Proportion:9.1:1
Gas Cylinder number:1
Packing Dimension(mm):1470*835*770
