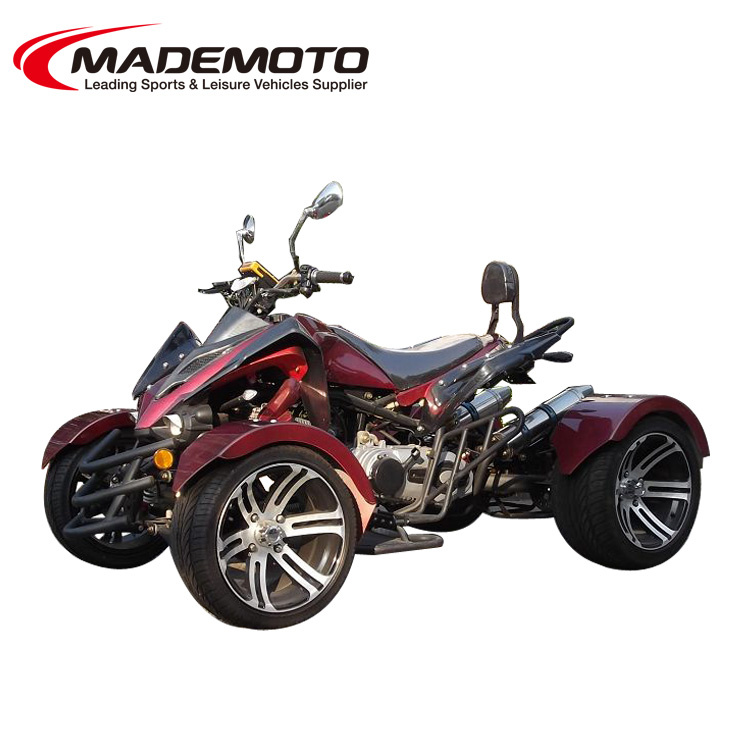

ATV Equipped with Wide Front Arm and 1000mm Rear Axle (AT3001)

Specifications

Prod Model:	AT3001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wheel Number:	4
Fuel Tank Capacity:	8L
Ignition Method:	Cdi
Max.Power:	13.0kw/6,500rpm
Max.Torque:	20.5n.M/5,000rpm
Transmission:	Automatic CVT,R-N-F,Reverse Gear,Chain
Battery Spec:	12V,9ah
Front Suspension Detail:	Double a X Swing Arm,:Air Chamber Shock Absorbers
Rear Suspension Detail:	Divided Ballonet Absorber
Wheel Side:	Front: 235X30-14, Rear: 270X30-14
Transmission Type:	Automatic
Engine Type:	4 Stroke
Structure:	Without Door
Displacement:	300CC
Transmission System:	Chain Drive
Fuel:	Gas / Diesel
Brake Type:	Disc Brake
Maximum Speed:	>75 km/h
Certification:	EEC
Power:	300cc
Brand:	Mademoto

Product Description

ATV Equipped with Powerful water Cooling Engine(AT3001)

Key Specifications:
1. Wheel number: 4
2. Piston displacement: 300cc CVT
3. Engine type: Single cylinder, water-cooled
4. Starting system: Electric
5. Fuel tank capacity: 8L
6. Drive train: Chain
7. Ignition method: CDI
8. Max. Power 13.0kw/6, 500rpm
9. Max. Torque: 20.5N. M/5, 000rpm
10. Brakes: (Front/Rear)Disc/Disc
11. Transmission: Automatic CVT, R-N-F, reverse gear, chain
12. Battery spec: 12V, 9AH
13. Front suspension detail: Double A x swing arm,: Air chamber shock absorbers
14. Rear suspension detail: Divided ballonet absorber
15. Wheel side: Front: 235x30-14, rear: 270x30-14
16. Vehicle dimension: 198x129x100cm
17. Wheel base: 142cm
18. Seat height from ground: 74cm
19. Min. Ground clearance: 80mm
20. Loading capacity: 370kgs


Package: Iron cage with carton outside
21. Net weight: 229kgs
22. Gross weight: 252kgs
23. Carton size: 180x112x74cm/1pc
24. Container: 18pcs/20', 39pcs/40'HQ


Minimum Order Quantity: 5pcs
