ATV Equipped with Powerful Air Cooling Engine At0523
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: | AT0523 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Size: | 1470X970X970mm |
| Compression Ratio: | 9.0:1 |
| Fuel Tank Volume: | 4.0L |
| Oil Consumption: | 3.4L/100km |
| Starting System: | Cdi Electric Start |
| Load Capacity: | 85kgs |
| Rated Power: | 2.0kw/8000r/Min |
| Rated Torque: | 2.6n.M/5000r/Min |
| Wheel Spider: | Front and Rear 145/70-6 |
| Wheel: | Iron |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Structure: | Without Door |
| Displacement: | 50cc & 110cc |
| Maximum Speed: | 40km/H |
| Brake Type: | Front: Drum Brake; Rear: Disc Brake |
Product Description

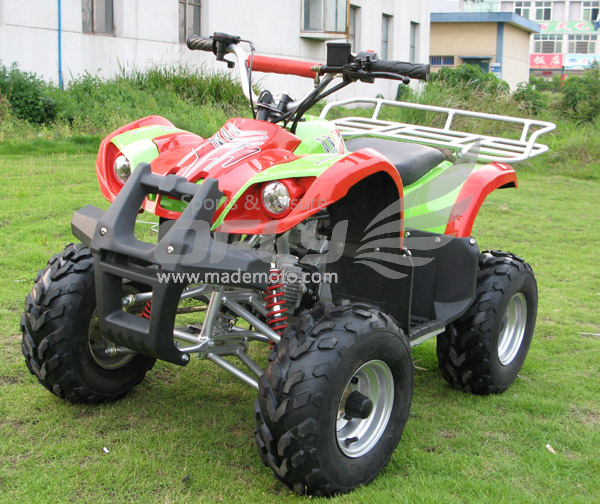

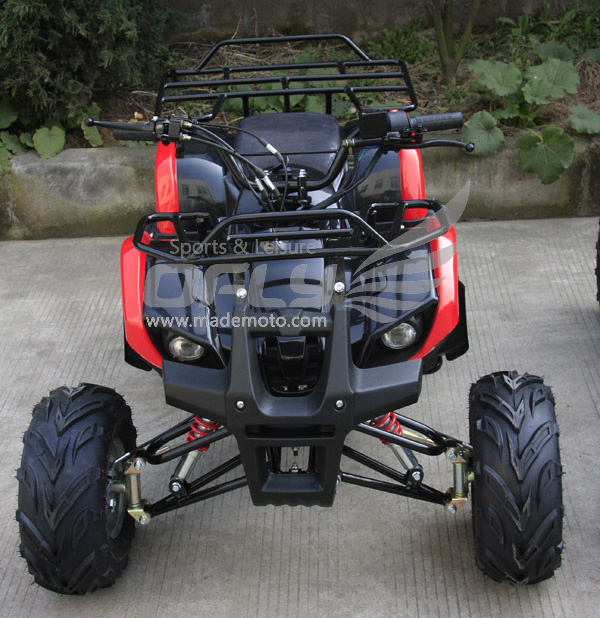

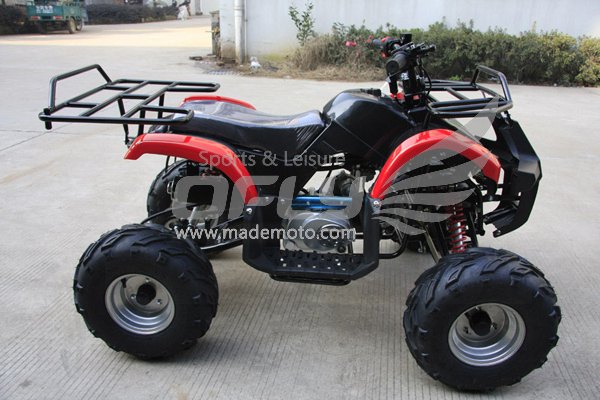

atv50CC ATV Equipped with Powerful Air Cooling Engine & Reverse Gear Shift
AT0523-A
Key Specifications:
1. Wheel number: 4
2. Product size: 1470x970x970mm
3. Compression ratio: 9.0:1
4. Piston displacement: 50cc
5. Engine: single-cylinder, 4-stroke, air-cooling
6. Battery:12V 4AH
7. Fuel tank volume: 4.0L
8. Oil consumption: 3.4L/100km
9. Lubricating oil: SE15W/40 SF 10W/30
10. Starting system: CDI electric start
11. Electric sparking plug: A7RTC
12. Drive system: chain dive
13. Brake: Front: drum brake; Rear: disc brake
14. Max speed: 40km/h
15. Load capacity: 85kgs
16. Rated power: 2.0Kw/8000r/min
17. Rated torque: 2.6N.m/5000r/min
18. Wheel: front and rear 145/70-6
19. Wheel spider: iron
20. Transmission mode: 2 gears, one speed gear + one reverse gear
21. Clutch method: automatic clutch
22. Break method: manual brake
23. Shock absorption method: front and rear hydraulic shock absorber
24. Color available: black, blue, silver, red optional
Package: Iron cage with carton outside
25. Net weight: 97kgs/214lbs
26. Gross weight: 112kgs/247lbs
27. Carton size: 132x83x64cm/1pc
28. Container: 38pcs/20', 82pcs/40', 96pcs/40'HQ
Special Features:
110cc engine is optional
Chain driving power transmission
