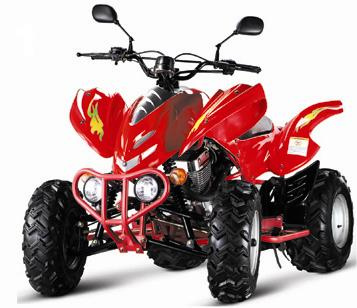

ATV (DY-A350)

Specifications

Prod Model:	DY-A350

Product Description

Features:
Engine:350cc
Overall Dimension L*W*H 1900mm*1050mm*1160mm
Ground clearance 120mm
Max Speed ≥70km/h
Climbing Ability ≥20 D
Specification of Front wheel 21*7-10/21*8-10 (on road)
Specification of Rear wheel 22*10-8/22*10-10(on road)
Brake system front/rear Drum/Disk
Engine Two Cylinder/Four Stroke
Cylinder dia..*Working stroke 53mm*53mm
Efficient Capacity 234ml
Rated Power and Rotate Speed 12.5KW/8500r/min
Max Torque and Rotate Speed 15N.m/7500r/min
Compressing Ratio 9.2:1
Gearshift Mode Five Speed/Reverse
Transmission Shaft Drive
Starting System Electric
Cooling System Air Cooling
Fuel tank 7.5L
Packing Size 1780mm*1150mm*1040mm
Net weight 220KG
Gross weight 250KG
