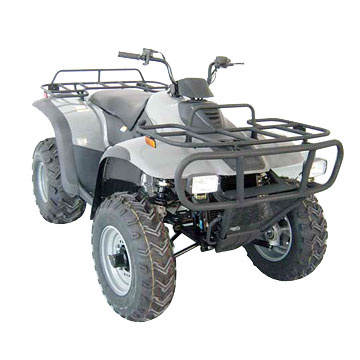

ATV (DY-A260)

Specifications

Prod Model:	DY-A260

Product Description

Specifications:
1) fuel capacity:14.2l (3.75gal)
2) engine oil capacity:1.4l (1.23qt)
3) ground clearance:18.3mm (7.2")
4) dimensions:1170 (46") x 2096 (82.5") x 1170mm (46")
5) wheel base:1265mm (49.75")
6) turn radius:3277mm (129")
7) dry weight:280kg (616lbs)
8) front rack:18kg (40lbs)
9) rear rack:36kg (80lbs)
10) load capacity (combined rider & playload):150kg (350lbs)
11) tongue weight:11kg (25lbs)
12) tow capacity:200kg (450lbs)
13) drive system:Cvt
14) front tire:24 x 8-12
15) rear tire:24 x 11-10
16) tire pressure(front):27.6kp 4psi
17) tire pressure(rear):20.7kp 3psi
18) brake system
19) service brake front brake hydraulic disc
20) rear brake
21) parking brake all wheel hydraulic lock
22) auxiliary brake rear brake hydraulic disc

Engine:
1) engine type:Lh170mm, 4 stroke, single cylinder, sohc
2) bore x stroke:70 x 66.8mm
3) displacement:257cm3
4) starter system:Electric starter
5) engine cooling:Liquid-cooled
6) lubrication system:Wet sump
7) carburetor:Cvk30
8) ignition:T.C.I
9) spark plug type:Dr & ea (ngk)

Electrical equipment:
1) battery:12v, 14ah
2) headlight:35 / 35w
3) brake/tail light:21 / 5w
4) reverse indicator light:1w
5) fan indicator light:1w
6) high beam light:1w
7) neutral position light:1w
8) heat alarm light:1w

Packing:Steel crate
Conveyance:Qty/40' fcl:27pcs
