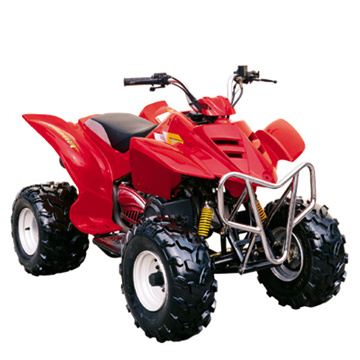

Home Zhejiang Global Strong Industrial & Trading Co., Ltd. ATV (DG-ATV021)
Product Description
Item Number: DG-ATV021Engine Type: 4-Strokes, Air Cooled 150CC
Transmission System: Chain Drive
Bore x Stroke (mm): 52.4x57.8
Piston Displacement (cc): 124
Compression Ratio: 9.2: 1
Maximum Power (kw/r/min): 5.25/7500
Maximum Torque (N. M. /rpm): 6.5/5750
Starter System: Electric Starter
Lubrication: Auto
Transmission: 4 Speed, Semi Automatic
Overall Length (mm): 1540
Overall Width (mm): 860
Overall Hight (mm): 950
Wheel Base (mm): 1040
Seat Hight (mm): 670
Min. Turning Radius (mm): 2400
Ground Clearance (mm): 100
Rider Capacity: 1 Person
Dry Weight (kg): 130
Brake (Front/Rear): Drum/Drum
Tyre, Front: 19x7-8/2.9Psi
Tyre, Rear: 18x9. 5-8/2.9psi
Ignition Type: C. D. I.
Fuel Tank Capacity (L): 7.8
Engine Oil Capacity (L): 0.95
Gear Oil Capacity (L): 0.12
Front Suspension: Leading Arm
Rear Suspension: Monoshock Swing Arm
Parking Brake: Mechanical Lock
Max. Load Capacity (kg): 95
Max. Speed: 50
Battery: 12V-9Ah
Mainly dedicates to the research and production of various scooters, electric power vehicles and other sports equipments on the basis of modern plants, advanced production equipments; Perfect testing methods and high quality staff.
