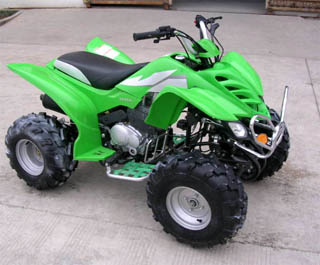

Home Zhejiang Global Strong Industrial & Trading Co., Ltd. ATV (DG-ATV018) 200cc
Product Description
Item Number: DG-ATV018Engine type: 4-strokes, air cooled
Transmission system: Shaft drive
Bore x stroke (mm): 52.4 x 49.5
Piston displacement (ml): 200CC
Maximum power (kw/r/min): 11kw/8000r/min
Maximum torque: 13N. M/6500r/min
Starting: Electric star
Transmission: 4-speed, semi automatic
Seat height (mm): 670
Min turning radius (mm): 2400
Ground clearance (mm): 100
Brake (front/rear): Drum/drum
Tire (front): 19 x 7-8/29psi
Tire (rear): 18 x 9.5-8/2.9psi
Ignition type: C. D. I Fuel tank capability (L): 7.8
Rear suspension: Mono shock swing arm
Front suspension: Leading arm
Parking brake: Mechanical lock
Battery: 12V-9AH
Max load capacity (kg): 95
Engine oil capacity (L): 0.95
Gear oil capacity (L): 0.12
Dry weight (kg): 130
Rear track (mm): 710
Front track (mm): 725
Wheel base: 1040
Overall height (mm): 950
Lubrication: Auto
Overall length (mm): 1540
Overall width (mm): 860
Compression ratio: 9.1: 1
Cylinder arrangement: Single cylinder
24pcs/20FT, 66pcs/40FT
Mainly dedicates to the research and production of various scooters, electric power vehicles and other sports equipments on the basis of modern plants, advanced production equipments; Perfect testing methods and high quality staff.
