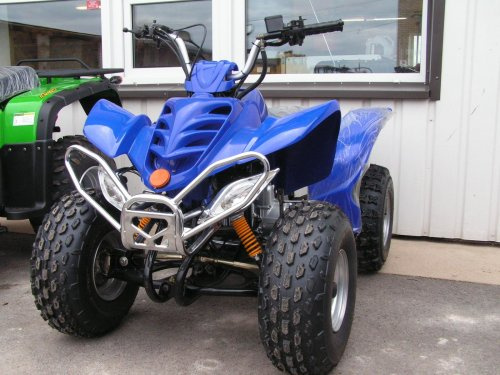

Home Zhejiang Zhongtai Vehicle Manufacture Co., Ltd. ATV (CY110)
Specifications
Product Description
1) Overall dimensions: 1760 * 950 * 830mm2) Wheelbase: 1040mm, seat height: 670mm
3) Min ground clearance: 100mm
4) Min turning radius: 2400 mm
5) Dry weight: 145kg
6) Engine: 4-stroke, single cylinder, air cooling
7) Displacement: 110cc
8) Bore and stroke: 52. 4 * 49. 5mm
9) Starting system: Electric
10) Fuel tank capacity: 6L
11) Front tires: 19 * 7-8 /2. 9psi
12) Rear tires: 18 * 9. 50-8 /2. 9psi
13) Compression ratio: 9. 6: 1
14) Brake: Drum
15) Rider capacity: 1 person
16) Maximum speed (road) km/h: 40
17) Max load capacity: 95kg (209lb)
18) Engine oil capacity: 0. 95L
19) Gear oil capacity: 0. 12
20) Transmission: Shaft drive
21) Front suspension: Leading arm, real suspension: Swing arm
22) Battery: 112V-7A
Packing:
Carton dimensions: 1480 * 840* 780mm
Conveyance:
Qty/20' FCL: 27 sets
Qty/40' HQ: 63 sets
