Specifications
Product Description

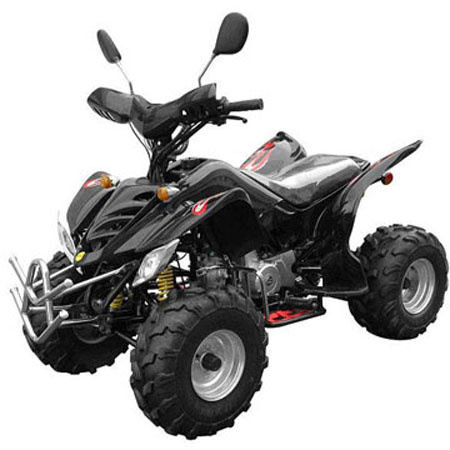

Name: ATV
Model: CS-A7017
Detail:
Engine: 110cc, single cylinder, 4 stroke, auto clutch, air filter air cooled, double swing arm
Frame: Iron
Bodywork: ABS plastic
Wheel: Front AT19*7-8, rear 18*9.5-8
Tank: 7.0L, plastic tank
Handle bar and brake bar: Plastic handle bar and aluminum brake bar
Exhaust/Muffler: Chrome
Battery: 12V, 9Ah
Starting system: Electrical start
Drive system: Chain drive
Suspension: Front Double Arm-Swing, rear Integral
Reverse gear: Yes
Brake system: Front drum brake, rear hydraulic disc brake
Lamps: Head lamps and turning lamp
Max Speed: 60km/h, fully, 3 speeds gear forward (1 speed for reverse gear)
Load Capacity: 100kg
G. W/N. W: 165KGS/155KGS
Product Size: 154*98*104cm, Seat Height: 65cm tread: 89cm
Carton Size: 152*83*72 cm
Qty: 31PCS/20", 63PCS/40", 68PCS/40HQ
