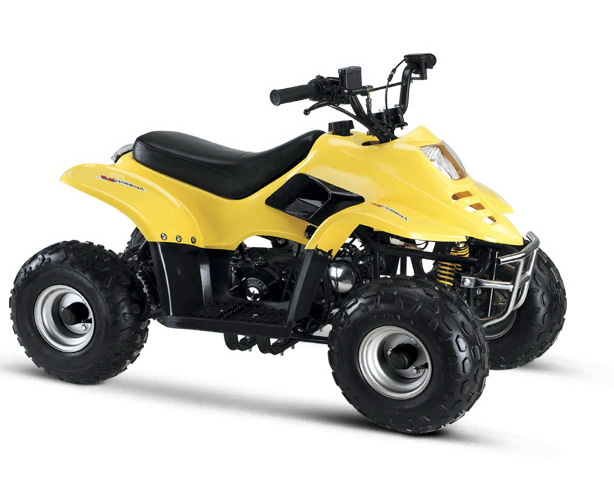

Home Zhejiang Liya Vehicle Co., Ltd. ATV (ATV504-XK)
Specifications
| Prod Model: | ATV504-XK |
|---|
Product Description
Model: ATV504-XKEngine: 50/70/90110cc, single cylinder, air cooled, 4 stroke
Transmission: Chain drive, auto clutch
Start mode: Electric start
Dimensions (L*W*H): 1200*850*710mm
Wheelbase: 850mm
Seat Height: 580mm
Min. Ground clearance: 60mm
Fuel tank capacity: 2.3L
Wheel size: Front & rear 145/70-6''
Or front & rear 16*8-7
Brake system: (F/R): Drum/disc
Max. Speed: 50km/h
Rated loading: 100KG
Dry weight: 75kg
Carton dimensions (L*W*H): 1160*670 *590mm
Conveyance: 135pcs/40'HQ
