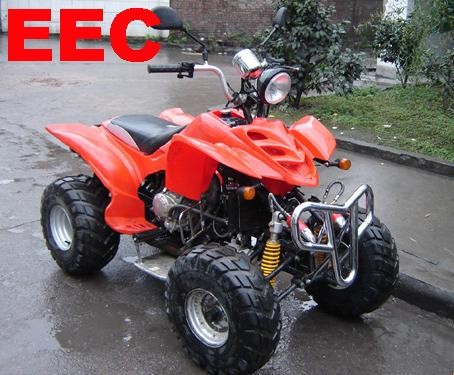

ATV (ATV200-3EEC)

Specifications

Prod Model:	ATV200-3EEC

Product Description

LxWxH(mm) :1630*1000*1060
Alex base :1050mm
Ground clearance:230mm
Wheelbase (mm):F: 870 R:760
Dead Weight:153KGS
Max. Speed km/h:60
Braking type(F/R):Disk/Disk
Tire Spec. (F/R):F:19*7.0-8
:R;18*9.50-8
Engine Model:1P57QMJ
Engine Type:Single cylinder, air-cooled,4-strokes, Horizontal
Bore x Stroke mm:57.4*57.8
Compression ratio:10:1
Piston Displacement ml:149.6
Max. Power (kw/r.min):5/6500+5%
Max. Torque (N/r.min):10/4500+5%
Spark Plug:A7RTC
Lubrication capacity L:0.9
Fuel Type :90
Carburetor Type:PD24J
Lubrication method :Pressure/split
Oil Pump Type:Rotator
Clutch Type:Automotive,Eccentric Battery:12V7AH
Economical Fuel Consumption g/kw.h :389
Ignition Type:CDI
Tail light/Braking Indicator:5/21
Hollow Light:3
Turning Light:10
Head Light:35
Revise Light:3
Conveyance:
Qty/20' FCL: 30pcs
Qty/40' FCL: 66pcs
Qty/40' HQ: 66pcs
