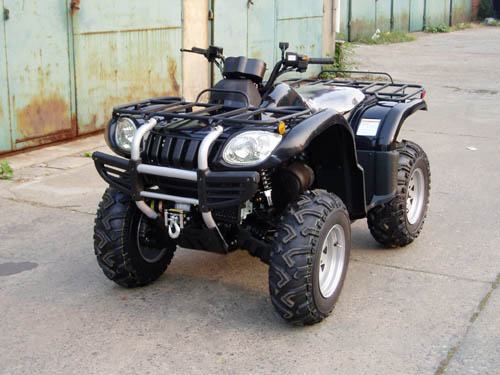

ATV (ATV-650)

Specifications

Prod Model:	ATV-650

Product Description

Dimension and Mass
Overall dimension(LxWxH): 2150x1180x1200 mm (84.6x49.2x47.2 in. )
Wheel base: 1280 mm (50.3 in. )
Wheel track------front: 977 mm (38.4 in. )
Wheel track------rear: 926 mm (36.4 in. )
Ground clearance: 240 mm (9.5 in. )
Seat hight: 880 mm (34.6 in. )
Dry weight: 350 Kg (772 lbs)
Fender and color available: Plastic, Red, Blue, Green ect

Engine
Type: Horizontally opposed, Dual-cylinder, four-stroke, water-cooled, CDI
Displacement: 644 cm3 (650CC)
Bore x Stroke: 76 x 71 mm (2.99 x 2.79 in. )
Compression: 8: 1
Starting mode: Electric
Standard power output: 20.0 kw
Max torque: 45N. M
Transmission and Chassis
Transmission: Manual or pedal operated
Final Drive: 2 x 4 / 4 x 4 shaft
Suspension: Independent -double A-arm
Front tire size: AT25 x 8-12
Rear tire size: AT25 x 10-12
Brake system: Hydraulic disc front & rear
Parking device: Foot rest, R. H.
Electrical and Instrument
Battery: 36Ah. 12V
Instrument: Digital indicator Fuel gauge, Neutral indicator etc.
Speedometer/Odometer: Metric system/British system available

Capacity
Turning radius: <3500 mm (<138 in. )
Max payload: 220Kg(front rack 40 Kg, rear rack 80 Kg and one occupant)
485 lbs(front rack 88 lbs, rear rack 176 lbs and one occupant)
Fuel capacity: 18 L (4.5 U. S gal)
Max speed: 75 km/h (46 mile/h)
Climbing Angle: <40o
Towing capacity: 500 Kg (1102 lbs)
Accessories
Trailer, Winch, Snow plaug and Forklift, ect as requirement.
