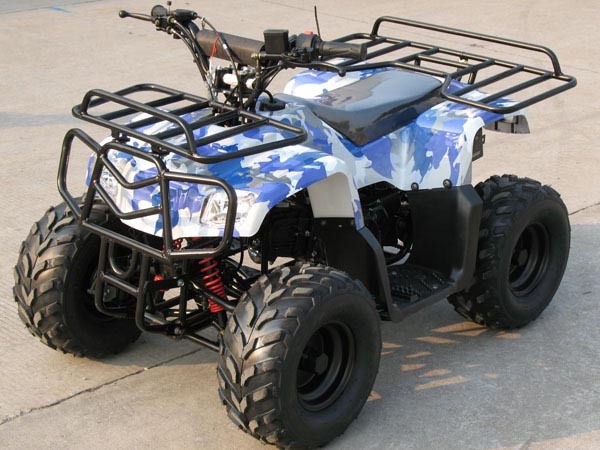

Home Zhejiang Qiye Scooter Co., Ltd. ATV (ATV-3050AX)
Specifications
| Prod Model: | ATV-3050AX |
|---|
Product Description
Features:1)Engine displancement: 110cc
2) Max. speed: 50km/h
3) Ignition method: CDI
4) Starting method: Electric start
5) Transmission method: Chain drive
6) Tire:
a) Front tire: 16 x 8-7
b) Rear tire: 16 x 8-7
7) Wheelbase: 845mm
8) Ground clearance: 130mm
9) Brake: (front/rear) drum brake / disc brake
10) Compression ratio: 9.0:1
11) Max. power: 5.0kW / 7,500r/min
12) Max. torque: 7.0N.m / 5,500r/min
13) Bore x stroke: 52.4 x 49.5
14) Battery: 12V 7AH
15) Max. load: 70kg
16) N.W.: 90kg
17) G.W.: 110kg
Packing:
Packing size: 1,190 x 770 x 640mm
Conveyance:
Qty/40' HQ: 120pcs
