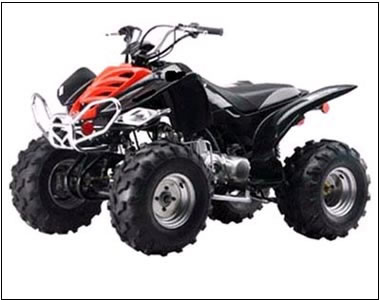

Home Zhejiang Tyco Scooter Manufacture Co., Ltd. ATV (ATV-150)
Specifications
| Prod Model: | ATV-150 |
|---|
Product Description
Engine Model 1P57QMJEngine Style Single Cylinder, Air-cooled, 4-stroke
Bore * Stroke 57. 4*57. 8(mm *mm)
Ignition C. D. I.
Lubrication Pressure/ Splash
Max. Power 7. 0/7000+/-150(Kw/r/min)
Max. Torque 8. 8/5500+/-150(N. M/r/min)
Impression Ratio 8. 8: 1
Starting Type Electric
Max. Speed 55(Km/H)
Oil Consumption ≤365(g/Kw?H)
Max. Noice 80(dB)
Clutch
Transmission CVT
Parameter of Motorcycle
Dimension 1625*860*960(L*W*H mm)
Wheel Base 1050(mm)
Gross Weight 145(Kg)
Dry Weight 125(Kg)
Transmission Type
Tyre and Rim F.: 19*7-8 / R.: 18*9. 50-8
Brake Style F. Drum / R. Dick
Absorber Style F.: Independent Hanging / R.: Middle Absorber
Displacement 149. 5ml
Oiltank Capacity 7. 5(L)
Climbing Ability >/=25º
Max. Load 95(Kg)
Packing Vol, 1485*835*780(L*W*H mm)
Container Capacity 40": 66 Unit 20": 30Unit
