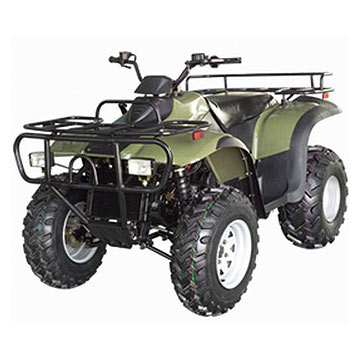

Home Zhejiang Shenying Machinery Manufacturer Co., Ltd. ATV (ATV-04)
Specifications
| Prod Model: | ATV-04 |
|---|
Product Description
Features:1) Engine: double cylinder, 4 stroke air-cooled
2) Engine displacement(ml): 249. 2
3) Bore*stroke(mm): 53*53
4) Max power(kw/(r/min)): 13/8500
5) Minimunfuel consumption(g/kw*h): 400
6) Start mode: electrical
7) Displacement: 250 CC
8) Transmission mode: chain
9) Brake type(front/rear) drum/drum
10) Brake distance(m/30km): 7
11) Shift speed type five. with reverse gear
12) Clutch mode manual clutch
13) Dimensions: 1900 x 1050 x 1070mm
14) Climbing degree: 35
15) Lamp: double head lamp
16) Seat height: 720mm
17) Top speed(km/h): 70
18) Type dimension(front/rear) AT23*7-10/AT22*10-10
19) Cover material PP
Packing:
Carton dimensions: 1940 x 1065 x 880mm
G. W. /N. W. 270/310 KGS
Conveyance:
QTY/20'GP 12PCS
QTY/40'GP 24PCS
QTY/40'HQ 36PCS
