Specifications

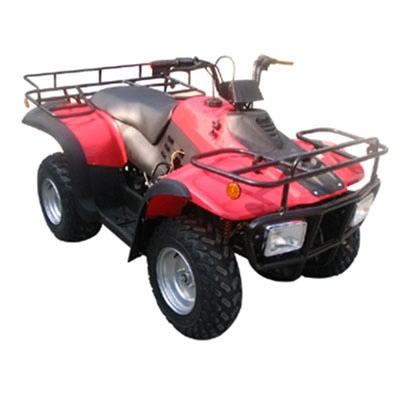

| Prod Model: | ATV-750 |
|---|
Product Description
TY-750ATVDimension(mm): 1970 x 1050 x 1100
Engine type: Twin-cylinder, air-cooled, 4-stroke
Displacement(ml): 746
Power(kw/r/min): 17. 7/4800
Max. Torque(N. m/r/min): 39/3600
Starting: Electric starting
Max speed(km/h): 80
Transmission: Shaft drive
Brake(front/rear): drum/disc
Tyre size(front/rear): 21×8-10/22×10-10
Ignition mode: Battery Ignition
Compression ratio: 6. 0: 1
Wheel base(mm): 1220
Econimical oil exhaust(kg/kw. h): <0. 333
Shock absorber: Liquid pressure
Ground clearance(mm): 210
Fuel tank capacity(L): 9
N. W. (kg): 260
Speed: 4 gears with reverse
Carton dimension(mm): 2180 x 1160 x 800
Qty/20FT: 10units
Qty/40FT: 33units
