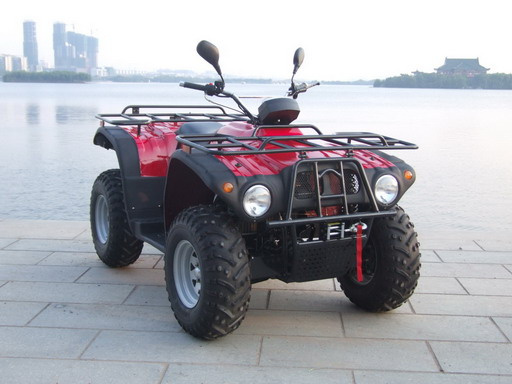

ATV 650CC

Specifications

Prod Model:	650ST-1

Product Description

New kind of ATV, 650 cc engine, water cooled, 4x4 driven, electric gear shifting with 4 gears forwards and 1 reverse, extra accessories such as electrical winch, rear tow ball, electrical socket, snow plough and snow chain. Good performance in working in farm or forest.

Valve System: Cam shaft, top position
Displacement: 644ml
Compression ratio: 8.4: 1
Cooling system: Water cooled
Start method: Electric
Final drive: 4 * 4 wheel driving
Transmission: Manual / Reverse
Front brake: Disc brake
Rear brake: Drum
Front tire: 25 * 10- 12
Rear tire: 25 * 10 -12
Wheel distance: 1, 530mm
Axle Distance: 1, 033mm
Max. Output power: 17.0kW/4500rpm
Max. Speed: ≥60km/h
Economic fuel Consumption: ≤2.9L/100km
L * W * H: 2, 250mm*1, 260mm*1, 120mm
Fuel tank volume: 12.0 L
Min. Ground clearance: 240mm
Packing material: IRON FRAME
Packing measurement: 2, 260mm*1, 320mm*1, 170mm
N. W.: 435KG
Packing QTY: 8PCS/20' FCL, 18PCS/40'FCL
