Product Description

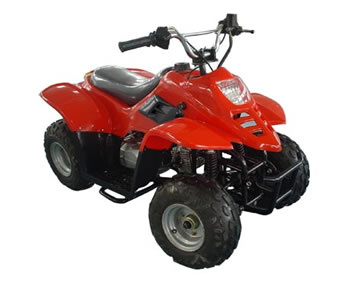

Model: Mini ATV50Gross weight: 63 kgs
Net weight: 71 kgs
Max Load: 80 kgs
Max speed: >30 km/h
Climbing ability: > 15 Degree
Material: Steel frame+ABS plastic deck
Distance between axles: 690 mm
Distance between front wheels: 420 mm
Distance between rear wheels: 510 mm
Ground clearance: 110 mm
Specification of Front Wheel: 145/70-6
Specification of rear Wheel: 145/70-6
Engine: 50cc single-cylinder, 4 stroke
Rated Power and Rotate Speed: 2. 3kw/8500rpm.
Approx Max Torgue and Rotate Speed: 2. 7N. M/6500r/min
Displacement: 49cc compressing
Ratio: 7: 1 Fuel consumption: 100km/2. 2L
Tank capacity: 6. 7L
Transmission: Fully auto clutch & 4speeds semi auto
Starting system: Electric start and kick-back start
Cool way: Air cooling
Brake: Disk type Tyre: Rubber, pneumatic
Packing size: 123*73*69 cms 40 H Q: 81
Colors: Blue, black, white, yellow, red, green
