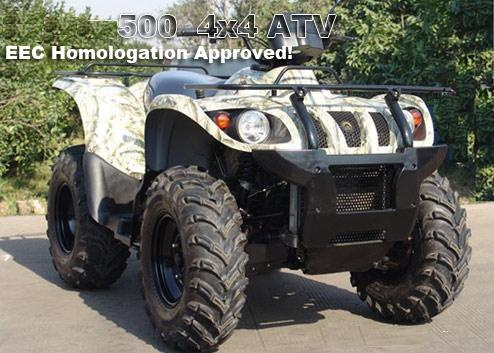

Home Peder Scooter Manufacture Co., Ltd. ATV (500)
| Prod Model: | ATV500 |
|---|
Product Description
CVT fully auto with hand reverse, and extra low gear. R, N, D, L2WD/4WD adjustable by electric switch
4 wheels independent suspension
Japanese imported caburetor, easy starting in snowing area.
4 wheels disc brake.
LH hand brake stop the front wheels.
RH hand brake stop the rear wheels.
Foot brake stop the 4 wheels.
Shaft drive.
Big radiator.
Engine: 4 strokes, water- cool, CTV Fully Auto
Cylinder: Single cylinder
Lubrication: Pressure splash
Cylinder Bore Diamiter: 92mm(3.63")
Piston Stroke: 75mm(2.96")
Displacement: 498.6cm³
Compression Ratio: 10.2:1
Carburetor: Single Chanber
Transmission: CVT Fully Auto w/Belt
Gear Shiftting R, N, D, L (Reverse, Neutual, Drive, Low gear)
Max Power: 24 kw / 6800r / min
Max Torge: 38 N.M / 5000r /min
L x W x H: 2020mm x 1160mm x 1170mm
Weight: 330kg
Brake: Front + Rear Disc Brake
QTY/Container: 10 units/20'; 24 units/40'
Peder Scooter Manufacture Co., LTD is one of the major manufacturers of Scooters in China. The annual output now reaches 50, 000 vehicles. All vehicles and major parts meet international CE standards, all our products have got the EEC/EPA approval. We have exported to over 10 countries and regions including the USA, Germany, Australia, and Italy, etc.
In order to offer better after sales service to our custmers, we have built up the parts warehouse in Hungary with 30, 000 items spare parts there.
In order to offer better after sales service to our custmers, we have built up the parts warehouse in Hungary with 30, 000 items spare parts there.
