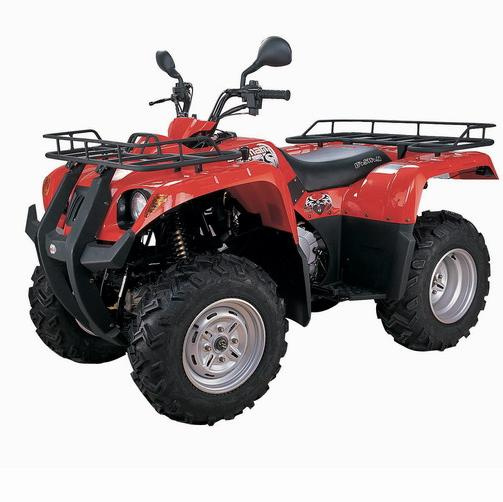

ATV 4stroke EEC (BS400S)

Specifications

Prod Model:	BS400S

Product Description

Engine

Type: Single cylinder, air-cooled, 4-stroke

Driving Mode: 4WD

Ignition mode: CDI

Compression proportion: 8.7: 1

Start mode: Electric/ electric manual

Fuel tank capacity: 14L

Transmission mode: Axis

Power: 16KW/ 6500r/ min

Max. Torque: 26N. M/ 5000r/ min

Min. Ground: Clearance: 210mm

Max. Speed: ≥75km/ h

Power source: 12V, 20Ah

Transmission: 5 gears with one reverse gear, one neutral-gear

Automatic clutch

Cylinder size: 83*71.6

Engine oil: 2.9L

Gear oil: Front tank: 0.4, rear tank0.25

Lubrication: Press splash

Displacement: 387.4mL

Parking trig: Mechanical lock

Gas cylinder number: 1

Chassis

Front wheels: 25*8-12

Rear wheels: 25*10-12

Break type (F/ R): Disc/ drum

Front hanging: Double arm-swing

Rear hanging: Integral

Dimensions

Product dimensions: 2100*1125*1175mm

Carton dimensions: 2150*1160*880mm

Wheelbase: 1240mm

Height of seats: 860mm

Dry weight: 330kg

Load capacity: 220kg

Climbing degree: ≥22

Min. Turning radius: 2900mm

Max. Number of riders: 2
