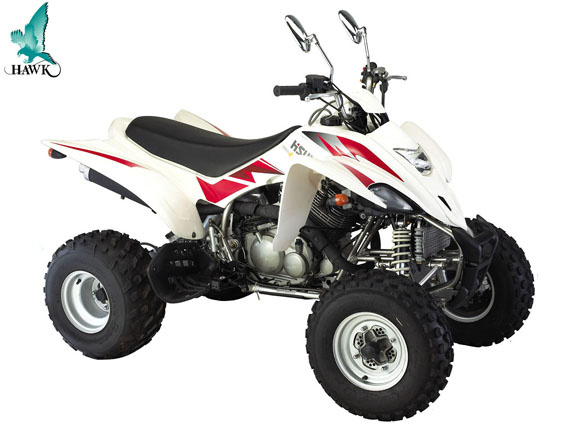

ATV 350cc (350ATV-2)

Specifications

Prod Model:	350ATV-2

Product Description

L x W x H: 1875mm*1100mm*1160mm
Wheelbase: 1230mm
Height Of The Seat: 830mm
Ground Clearance: 250mm
Turning Diameter: 6000mm
Vehicle Whole Mass(With Battery): 190kg
Brake Distance: A 7m(60km/h)
Startup Performance: A 15s
Maximum Speed: A 95km/h
Climbing Angle: A 22A
Tyre Specification(Vacuum Tyre):
Front: AT21*7-10; Rear: AT20*10-9
Arrester Model: Front: Double Disc/Handle Brake; Rear: Single Disc/Foot Control
Disc Brake Hydraulic
Oil Specification: DOT4
Fuel Capacity: 9.0L
Battery Specification: 12V 8Ah
Spark Plug Model: DR8EA(NGK)
Front Light: 12V 30W/30W*2
Rear Light: 12V 5W/21W*1
Fuse Specification: 15A
Type: Single Cylinder, Upright, Oil Cooling, 4 Stroke
Bore Stroke: 83mm*64.5mm
Compression Ratio: 9.2: 1
Cylinder Capacity: 349ml
Maximum Power: 19kW(7000r/min-7500r/min)
Rated Power And Rotate Speed: 18kW(7500r/min)
Maximum Torque And Totate Speed: 26N. M(6000r/min)
Clutch Model: Wet, Frictional
Output Style: Chain Drive
Speed Model: 6 Gears+Reverse gear
Ignition Style: CDI electronic ignition
Carburetor Model: PD36G
Engine Net Weight: 50kg
Loading Quantity: 20': 12 sets; 40'HQ: 38 sets
