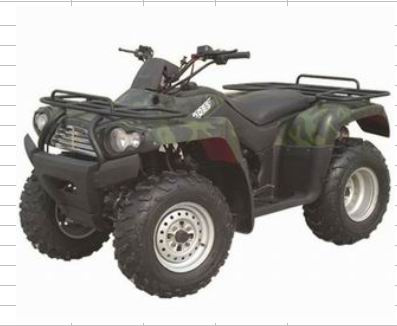

Home Shanghai Double Machinery Equipment Co., Ltd. ATV 300CC 400CC 4X4
Product Description
Engine type: 4-stroke, single cylinder, air-cooledDimensions (L x W x H) 1900 x 1050 x 1150mm
Max. Speed: 60km/h
Transmission: chain drive
Bore x stroke: 2-53 x 53mm
Efficient capacity: 292. 4ml
Compressing ratio: 9. 2: 1
Starting system: electric
Brake system front/rear: disc/disc
Fuel tank: 7. 5L
Steering angle: 30
Ignition CDI
Tire (front/rear) 22 x 8-7-10/22 x 10-10
Container capacity: 12pcs/20ft
Minimum Ground Clearance: 210mm
Dry Weight: 250Kg
Load Capacity: 210Kg
Maximum Speed: Up and equal 90km/h
Starting System: electric / hand pull
Transmission Systems: Shaft drive, 5 gears with reverse gear, 4X4WD
Fuel Tank Capacity: 10L
Tyre, front: AT24x8-12
Tyre, rear: AT24x9-11
Engine Displacement: 400ml
Compression Ratio: 8. 7: 1
Maximum Power: 12kw(5200r/min)
Maxiumu Torque: 23N. M(4000r/min)
Shock absorption system: Hydraulic pressure
Lubrication: Press splash
Brake System: Front disc brake and rear disc brake
Packing Sizes (L*W*H): 1980*800*1190mm
We would like to introduce ourselves as a leading manufacturer of gasoline engine, generator sets, centrifugal water pump, dirt water pump, high pressure fire fighting pump, welding & generator set, which pass EPA, CE, GS, TUV and ISO 9002 attestation and have been exported to over 80 countries and regions, including USA, Canada, Germany, Italy, etc.
