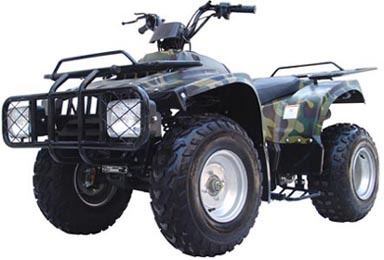

ATV 250CC (FST-250)

Specifications

Prod Model:	FST-250

Product Description

Engine: air-cooled, 4-stroke, double cylinder, fully-automatic
Displacement: 233.7cc
Compression ratio: 9.1:1
Starting mode: electric
Tank capacity: 11L
Front tire: AT23x7-10
Rear tire: AT22x10-10
Power(kw/r/min): 12kw/9000r/min
Start system: electric/recoil backup
Brake system: front mechanical drum brake, rear hydraulic
Packing brake: mechanical lock
Transmission: shaft drive
Maximum torque(n.m./r/min): 13n.m/7000r/min
Maximum speed: 65km/h
Maximum gradient: 25
Compression ratio: 9.1:1
Clutch: hand operation
Spark plug type: A7TC
Ignition type: CDI
Weight: 210kgs
Engine oil cap: 1.2L
Engine oil: 15W-40
Oil pump: inner-outer rotor type
Magneto: permanent magnetic
Lubrication: press/splash
Color available: red, green, black, c.camouflage
Overall dimensions: 1900*1060*1060mm
Carton meas: 1940*1005*1118mm
Container: 12pcs/20"GP, 24pcs/40"GP
