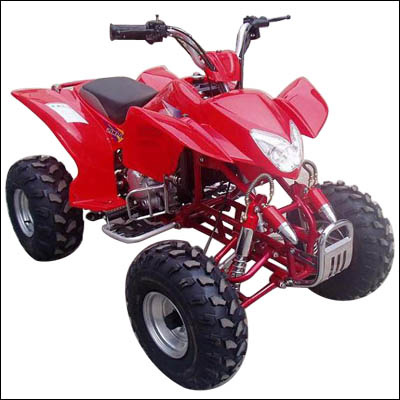

Home Zhezhong Weighing ATV(20CC)(200S-3A)
Specifications
| Prod Model: | ATV200S-3A |
|---|
Product Description
1) Engine type: single cylinder, water-cooled, 4-stroke2) Max. speed (km/h): 90
3) Transmission system: chain drive
4) Piston displacement (ml): 200cc
7) Maximum power: 12.5/8000
8) Maximum torque (Nm/rpm): 15.0/6000
9) Starting system: only electric start
10) Seat height (mm): 720
11) Ground clearance (mm): 110
12) Brake (front/rear): drum/disk
13) Front tire: AT 19 x 7-8/2.9psi
14) Rear tire: AT 18 x 9.5-8/2.9psi
15) Ignition type: CDI
16) Fuel tank capacity (L): 4.5
17) Fuel no.: RQ 90
18) Lubrication type: pressure, splash
19) Idling/turning speed (rpm): 1500
20) Front suspension: wishbone suspension
21) Rear suspension: mono-shock swing arm
22) Climb capability: 30
