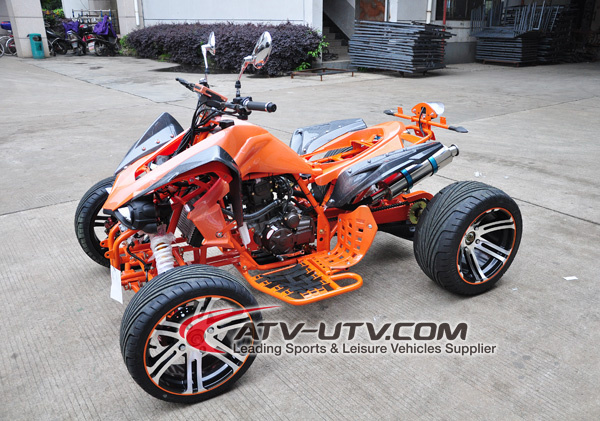

ATV 200cc 250cc in Option
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | AT2001 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Capacity: | 370kgs |
| Min. Ground Clearance: | 80mm |
| Seat Height From Ground: | 67cm |
| Wheel Base: | 140cm |
| Rear Suspension Detail: | Divided Ballonet |
| Battery Spec: | 12V,9ah |
| Brakes: (Front/Rear): | Disc/Disc |
| Max.Torque: | 17.5n.M/5,000rpm |
| Fuel Tank Capacity: | 8L |
| Engine Type: | 4 Stroke |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Fuel: | Gas / Diesel |
| Displacement: | 250CC |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
Product Description
ATVCE Approved 12 inch alloy wheel 200CC ATV Equipped with Powerful water Cooling Engine
AT2001-A
Key Specifications:
Wheel number: 4
Piston displacement: 200cc
Engine type: Single cylinder, water-cooled
Starting system: Electric
Fuel tank capacity: 8L
Drive train: Chain
Ignition method: CDI
Max. Power 13.0kw/7, 500rpm
Max. Torque: 17.5N. M/5, 000rpm
Brakes: (Front/Rear)Disc/Disc
Transmission: Manual clutch, 4-speed, reverse gear, chain
Battery spec: 12V, 9AH
Front suspension detail: Double A x swing arm; Air chamber shock absorber
Rear suspension detail: Divided ballonet absorber
Wheel side: Front: 185x30-14, rear: 270x30-14
Vehicle dimension: 195x118x110cm
Wheel base: 140cm
Seat height from ground: 67cm
Min. Ground clearance: 80mm
Loading capacity: 370kgs
AT2001-B
Key Specifications:
Wheel number: 4
Piston displacement: 250cc
Engine type: Single cylinder, water-cooled
Starting system: Electric
Fuel tank capacity: 8L
Drive train: Chain
Ignition method: CDI
Max. Power 13.0kw/7, 500rpm
Max. Torque: 17.5N. M/5, 000rpm
Brakes: (Front/Rear)Disc/Disc
Transmission: Manual clutch, 4-speed, reverse gear, chain
Battery spec: 12V, 9AH
Front suspension detail: Double A x swing arm; Air chamber shock absorber
Rear suspension detail: Divided ballonet absorber
Wheel side: Front: 185x30-14, rear: 270x30-14
Vehicle dimension: 195x118x110cm
Wheel base: 140cm
Seat height from ground: 67cm
Min. Ground clearance: 80mm
Loading capacity: 370kgs
Package: Iron cage with carton outside
Net weight: 190kgs
Gross weight: 220kgs
Carton size: 170x112x75cm/1pc
Container: 18pcs/20', 42pcs/40'HQ
