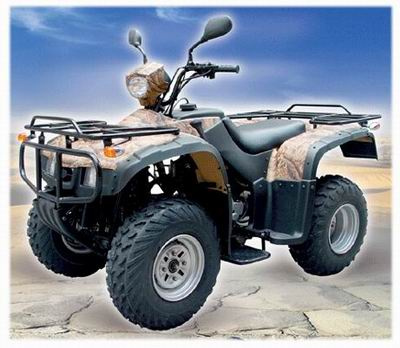

| Prod Model: | ATV 200-EC |
|---|
Product Description
ATV200-EC MAIN TECHNICAL DATAEngine Type: 4-Strokes. AirCooled
Transmission System: Shaft Drive, with Reverse
Bore x Stroke(mm): 63 x 62
Piston Displacement(ml): 193.2
Maximum Power(kw/r/min): 10.5/7500
Maximum Torque(N. M. /r/min): 14/6500
Starting System: Electric
Transmission: 5-Speeds
Seat Height(mm): 810
Min Turning Radius(mm): 2900
Ground Clearance(mm): 220
Brake(Front/Rear): Disc/Drum
Tyre, Front: AT 23 X 7-10
Tyre, Rear: AT 22 X 10-10
Ignition Type: C. D. I
Fuel Tank Capacity(L): 12
Front Suspension: Leading Arm
Rear Suspension: Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-14Ah
Max Load Capacity(kg): 165
Engine Oil Capacity(L): 1.6
Gear Oil Capacity(L): 0.27
Dry Weight(kg): 240
Rider Capacity: 2 Person
Wheel Base: 1160
Overall Height(mm): 1140
Lubrication: Pressure
Overall Length(mm): 1880
Overall Width(mm): 1040
Compression Ration: 9.0: 1
Cylinder Arrangement: Single Cylinder
Container quantity 12units/20'GP 22units/40'GP 34units/40'HQ
Chongqing Chongqing Longting Power Equipment Co., Ltd., a professional one of developing, manufacturing and marketing CROSSBIKE and ATV series products, is a new Chinese-foreign joint venture subordinate to Chongqing Loncin Group. The company has obtained ISO9001: International Quality and Management System2000 Authentication in 2002. The company possesses a manufacturing field of over 8000m2, a young management and technology team of high quality including over 200 employees, 50 engineer and technicians. And over 40 relative companies with more than 5000 workers are serving the company.
LONGTING company is equipped with the most advanced techniques of developing and manufacturing CROSSBIKE and ATV, one advanced assembling and packing process assembly line, two specific testing assembly lines and devices. The products are manufactured strictly by the level of ISO9001 and the annual output is 50000 sets. The company is one of the professionally export-oriented enterprises in Chongqing. Its core markets have been widely promoted in the USA, the UK, Spain, France, Germany, Australia and South Africa, etc. The series of ATV are LX50ST, LX90ST, LX110ST, LX125ST, LX150ST and LX250ST, as well as CROSSBIKE including LX50PY, LX80PY and LX90PY. Currently, the company is developing ATV with larger displacement.
LONGTING company abides by the enterprise ideal of high beginning and high level, taking people as priority, seeking the truth and innovation. The company insists on the operational policy based on customers focus and strict management, strengthening quality for competition. The company is being built as a comprehensive enterprise with standard management, excellent quality and various options. All staff unite and do their parts to develop and produce the perfect products for meeting customers demands.
LONGTING company is equipped with the most advanced techniques of developing and manufacturing CROSSBIKE and ATV, one advanced assembling and packing process assembly line, two specific testing assembly lines and devices. The products are manufactured strictly by the level of ISO9001 and the annual output is 50000 sets. The company is one of the professionally export-oriented enterprises in Chongqing. Its core markets have been widely promoted in the USA, the UK, Spain, France, Germany, Australia and South Africa, etc. The series of ATV are LX50ST, LX90ST, LX110ST, LX125ST, LX150ST and LX250ST, as well as CROSSBIKE including LX50PY, LX80PY and LX90PY. Currently, the company is developing ATV with larger displacement.
LONGTING company abides by the enterprise ideal of high beginning and high level, taking people as priority, seeking the truth and innovation. The company insists on the operational policy based on customers focus and strict management, strengthening quality for competition. The company is being built as a comprehensive enterprise with standard management, excellent quality and various options. All staff unite and do their parts to develop and produce the perfect products for meeting customers demands.
