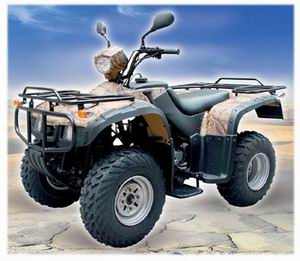

ATV 200-EC

Specifications

Prod Model:	ATV 200-EC

Product Description

ATV200-EC MAIN TECHNICAL DATA
Engine Type: 4-Strokes. AirCooled
Transmission System: Shaft Drive, with Reverse
Bore x Stroke(mm): 63 x 62
Piston Displacement(ml): 193. 2
Maximum Power(kw/r/min): 10. 5/7500
Maximum Torque(N. M. /r/min): 14/6500
Starting System: Electric
Transmission: 5-Speeds
Seat Height(mm): 810
Min Turning Radius(mm): 2900
Ground Clearance(mm): 220
Brake(Front/Rear): Disc/Drum
Tyre, Front: AT 23 X 7-10
Tyre, Rear: AT 22 X 10-10
Ignition Type: C. D. I
Fuel Tank Capacity(L): 12
Front Suspension: Leading Arm
Rear Suspension: Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-14Ah
Max Load Capacity(kg): 165
Engine Oil Capacity(L): 1. 6
Gear Oil Capacity(L): 0. 27
Dry Weight(kg): 240
Rider Capacity: 2 Person
Wheel Base: 1160
Overall Height(mm): 1140
Lubrication: Pressure
Overall Length(mm): 1880
Overall Width(mm): 1040
Compression Ration: 9. 0: 1
Cylinder Arrangement: Single Cylinder
Container quantity 12units/20'GP 22units/40'GP 34units/40'HQ
