Specifications
Prod Model: |
AT1503 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max Power: |
9.3kw/7500rpm |
Transmission: |
Manual Reverse, Chain Driv |
Brake (Front/Rear): |
Drum/Disc |
Starting System: |
Electric Start |
Battery Spec: |
12V, 9ah |
Rear Suspension Details: |
Mono Shock Swin |
Seat Height From Ground: |
80cm |
Ground Clearance: |
120mm |
Load Capacity: |
150kg |
Fuel Tank Capacity: |
7.8L |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
CE |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
250CC |
Structure: |
Without Door |
Maximum Speed: |
50-75 km/h |
Brake Type: |
Disc Brake |
Product Description
ATV

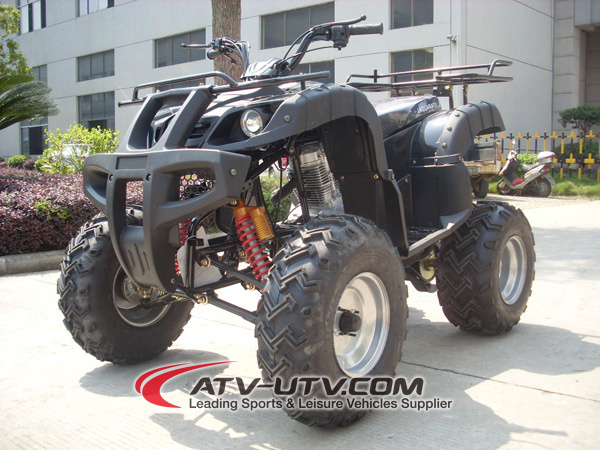

Gas-Powered Hot Selling 150cc Engine ATV
AT1503-A
Key Specifications:
1. Engine type: 150cc
2. Max torque: 10Nm/5500rpm
3. Max power: 9.3kw/7500rpm
4. Ignition type: CDI
5. Transmission: Manual reverse, chain drive
6. Brake (Front/Rear): Drum/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A X swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 19X7-8. Rear tires spec: 18X9.5-8
12. Vehicle dimensions: 174X95X109cm
13. Wheel base: 1200mm
14. Seat height from ground: 80cm
15. Ground clearance: 120mm
16. Load capacity: 150kg
17. Fuel tank capacity: 7.8L
AT1503-B
Key Specifications:
1. Engine type: 200cc
2. Max torque: 13.5Nm/5500rpm
3. Max power: 10kw/7500rpm
4. Ignition type: CDI
5. Transmission: Manual reverse, chain drive
6. Brake (Front/Rear): Drum/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A X swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 19X7-8. Rear tires spec: 18X9.5-8
12. Vehicle dimensions: 174X95X109cm
13. Wheel base: 1200mm
14. Seat height from ground: 80cm
15. Ground clearance: 120mm
16. Load capacity: 150kg
17. Fuel tank capacity: 7.8L
AT1503-C
Key Specifications:
1. Engine type: 250cc
2. Max torque: 17.5Nm/5000rpm
3. Max power: 11kw/7500rpm
4. Ignition type: CDI
5. Transmission: Manual reverse, chain drive
6. Brake (Front/Rear): Drum/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A X swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 19X7-8. Rear tires spec: 18X9.5-8
12. Vehicle dimensions: 174X95X109cm
13. Wheel base: 1200mm
14. Seat height from ground: 80cm
15. Ground clearance: 120mm
16. Load capacity: 150kg
17. Fuel tank capacity: 7.8L
Package: Iron cage with carton outside
18. Gross weight in carton: 180kg
19. Net weight: 165kg
20. Packing size: 156X112X85cm
21. Container: 30PCS/20ft; 59PCS/40ft; 66PCS/40'HQ
