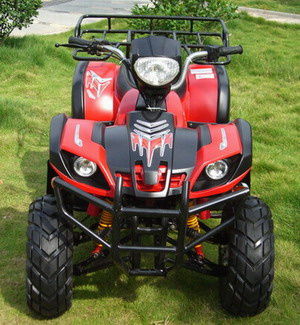

Home Yongkang Gamma Vehicle Co., Ltd. ATV 110-X
Specifications
| Prod Model: | ATV110-X |
|---|
Product Description
1. Engine type: 110CC, 4-stroke,air cooled2. Bore and stroke: 52.4 x 49.5
3. Compression ratio: 8.8:1
4. Max. torque: 6.5N.m/5,000rpm
5. Max. power: 4.7kW/7,500rpm
6. Ignition type: CDI
7. Transmission: automatic/(4-speed, semi-automatic), chain/shaft, reverse gear
8. Brake (front/rear): drum/disc
9. Start: electric start
10. Battery spec.: 12V, 9Ah
11) Suspension front: double arm, dual absorber
12) Suspension rear: single absorber and swing arm
13. Front tire spec.: 19 x 7-8
14. Rear tires spec.: 18 x 9.5-8
15. Vehicle dimensions: 165 x 88 x 95cm
16. Wheel base: 1,000mm
17. Seat height from ground: 75cm
18. Ground clearance: 100mm
19. Load capacity: 110kg
20. Fuel tank capacity: 7.8L
21. Gross weight in carton: 150kg
22. Net weight: 130kg
23. Packing size: 146 x 85 x 76cm
Conveyance:
Qty/20' FCL: 30PCS
Qty/40' FCL: 66PCS
Qty/40' HQ: 66PCS
