Specifications

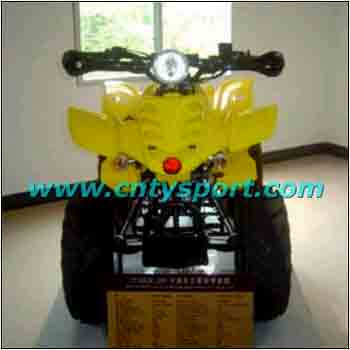

| Prod Model: | ATV-009 |
|---|
Product Description
ATV-009Engine Type: 4-Strokes, AirCooled; 90cc/110cc
Transmission System: Shaft Drive
Bore x Stroke(mm): 52. 4x 49. 5
Piston Displacement: 107
Maximum Power(kw/r/min): 5. 5/8000
Maximum Torque(N. M. /r/min): 6. 5/5750
Starting System: Electric Starter
Transmission: 4-Speed, Semi Automatic
Seat Height(mm): 670
Min Turning Radius(mm): 2400
Ground Clearance: 100
Brake(Front/Rear): Drum/Drum
Tyre, Fromt: 19X 7-8/2. 9Psi
Tyre, Rear: 18X9. 5-8/2. 9Psi
Ignition Type: C. D. I
Fuel Tank Capacity(L): 7. 8
Front Suspension: Leading Arm
Rear Suspension: Monoshock Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-9Ah
Max Load Capacity(kg): 95
Engine Oil Capacity(L): 0. 95
Gear Oil Capacity(L): 0. 12
Dry Weight(kg): 130
Rider Capacity: 1 Person
Wheel Base: 1040
Overall Height(mm): 950
Lubrication: AUTO
Overall Length(mm): 1540
Overall Width(mm): 860
Compression Ration: 9. 1: 1
Cylinder Arrangement: Single Cylinder
