Specifications
| Prod Model: | ATV-001 |
|---|
Product Description

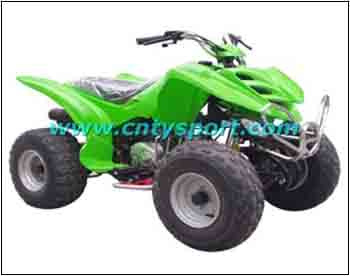

ATV-001Engine: Single Cylinder, Air-cooled, 4-stroke, 90CC/110CC
Demension(L*W*H)(mm): 1480*810*910
Wheel Base(mm): 985
Net Weight(kg): 110
Max. Load(kg): 130
Spark Plug: AT7C
Spark Plug Gap: . 06-0. 7
Front Tyer Size: 19*7--8
Rear Tyer Size: 18*9. 5--8
Impression Ratio: 9. 0: 1
Standard Power(kw/r/min): 5. 2/7500
Max. Torque(N. M/r/min): 7. 0/5000
Max. Speed(km/h): 40
Bore*Stroke(mm): 52. 4*49. 5
Idle Speed(r/min): 1500
Broke Distance(30km/h): 7M
Displacement(ml): 1. 7
Engine: IP52FMH
Climbability: 30
