Specifications
Prod Model: |
46AT0527-B1304 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wheel Number: |
4 |
Compression Ratio: |
9.0:1 |
Piston Displacement: |
110cc |
Engine: |
Single-Cylinder, 4-Stroke, Air-Cooling |
Battery: |
12V 4ah |
Fuel Tank Volume: |
4.0L |
Oil Consumption: |
3.4L/100km |
Lubricating Oil: |
Se15W/40 Sf 10W/30 |
Starting System: |
Cdi Electric Start |
Electric Sparking Plug: |
A7rtc |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
DOT |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
110CC |
Structure: |
Without Door |
Maximum Speed: |
<50 km/h |
Brake Type: |
Disc Brake |
Product Description
ATV

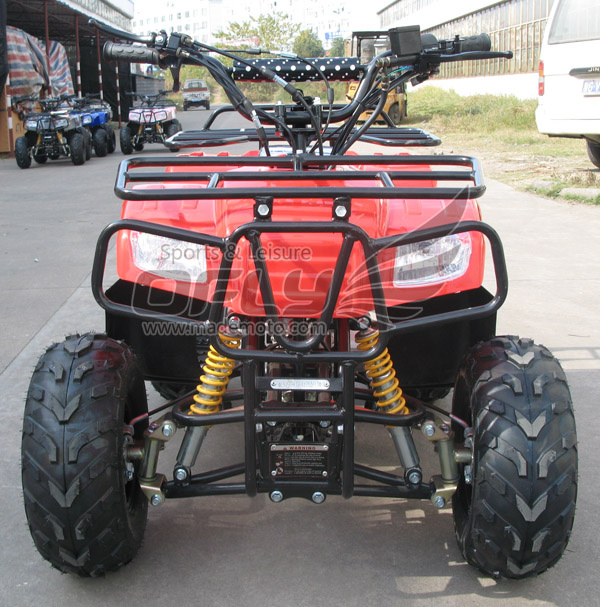

110CC ATV Equipped with Powerful Air Cooling Engine & Reverse Gear Shift
AT0527-B
Key Specifications:
1. Wheel number: 4
2. Product size: 1470x970x970mm
3. Compression ratio: 9.0: 1
4. Piston displacement: 110cc
5. Engine: Single-cylinder, 4-stroke, air-cooling
6. Battery: 12V 4AH
7. Fuel tank volume: 4.0L
8. Oil consumption: 3.4L/100km
9. Lubricating oil: SE15W/40 SF 10W/30
10. Starting system: CDI electric start
11. Electric sparking plug: A7RTC
12. Drive system: Chain dive
13. Brake: Front: Drum brake; Rear: Disc brake
14. Max speed: 40km/h
15. Load capacity: 85kgs
16. Rated power: 5.2Kw/7500r/min
17. Rated torque: 7.0N. M/5500r/min
18. Wheel: Front and rear 16/8-7
19. Wheel spider: Iron
20. Carburetor: PZ19
21. Transmission mode: 2 gears, one speed gear + one reverse gear
22. Clutch method: Automatic clutch
23. Break method: Manual brake
24. Shock absorption method: Front and rear hydraulic shock absorber
25. Color available: Black, blue, silver, red optional
Package: Iron cage with carton outside
26. Net weight: 97kgs/214lbs
27. Gross weight: 112kgs/247lbs
28. Carton size: 132x83x64cm/1pc
29. Container: 38pcs/20', 82pcs/40', 96pcs/40'HQ
Special Features:
L 50cc engine is optional
L Chain driving power transmission
Minimum Order Quantity: 5pcs
