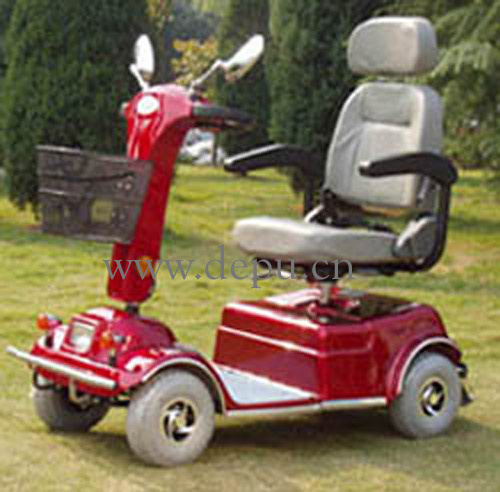

Applicable Mobility Scooter (DP-E005)

Specifications

Prod Model:	DP-E005

Product Description

DP-E005

Controller: CURTIS Controller, which is one of the best in the world
Motor: Rear Axle Motor
Battery: Sealed lead-acid maintenance-free battery
It could judge the defect from the sound when you turn on the key.
Product dimensions (mm): 1360*620*1180
Max forward speed: 6-12km/h (optional)
Max backward speed: 2. 4-4. 8km/h (optional)
Max Load: 140kg
Ground Clearance: 130mm
Climbing Capability: 12degree
Charger: 110-230VAC (optional) 24VDC-4A
Charge time: 6-8h
Motor: 450w
Battery: 12V 38AH (two)
N. W.: 98kg (including 2 Batteries: 27. 4kg)
Turning Radius: 130cm
Running distance per charge: 50km
Tire: 10(Airless tires of Pneumatic tires)
Accessories (not free): Cup holder\dust cover\front basket cover\awning
Container: 36 pcs/20ft, 72 pcs/40ft
Carton size: 136*68*66cm
Carton size for the seat: 54*50*32
