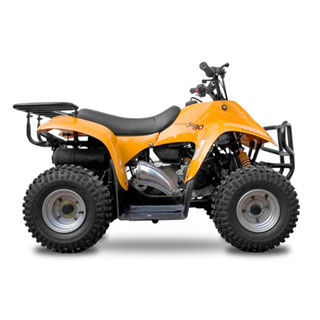

Home Hubei Machinery & Equipment Import & Export Company (Vehicle Devision) All Terrain Vehicle (JN80A)
| Prod Model: | JN80A |
|---|
Product Description
Product Feature:1.The great travel of the front wheels about 180mm and the enhanced capability for jumping obstacles.
2. Equipped with the liquid-cooled engine, possible to continue riding long distance.
3. Liquid-cooled engine sealed fully, possible to riding in the water.
4. There are more torque and more power to make the vehicle server well in the farm.
5. With automatic transmission of engine and rear hydraulic disk brake, the vehicle can be operated easily and safely.
6. Flexible handling and adult-liking body design.
7. A sole type "JN125 series" with a sole liquid-cooled 125cc engine, a sole body design in ATV industry.
Specification:
Lubrication Sys: Oil injection
Displacement: 78.2cc
Engine Type: 4 stroke air cooled
Compression Ratio: 9.2:1
Bore & Stroke: 47mm x 41.5mm
Transmission: Automatic
Length/width/Height: 1370 x 830 x 910mm
Wheel Base: 900mm
Seat Height: 650mm
Ground Clearance: 120mm
Fuel Tank Capacity: 4 L
Dry Weight: 120kg
Front Suspension: Dual A-arm
Front Tire: 16 x 8-7
Rear Suspension: Single swing arm
Rear Tire: 16 x 8-7
Starting/Backup: Electric/Kick
Front Brake: Drum
Ignition: CDI
Rear Brake: Drum
The size of packing for JN80A sample:
Overall length x overall width x overall height: 1400 x 850 x 1010 mm
Weight: 155kg
The size of packing in a batch
Length * width * height: 1400*830*760mm
Packing condition; Four wheels need to be removed and placed the same packing.
The handlebar need to be loosen and rotated to the body.
The container permitted JN50A, JN80A in a batch;
A container 20" can be permitted 33 sets for JN80A.
A container 40" can be permitted 66 sets for JN80A.
We supply 12 months guarantee to our products! More than 30 kinds of color for your selection! Best Price/Performance ratio in ATV line!!!Best Quality of ATVs, mini bike, dirt bike in China, having been deemed as the closest things to Japanese Famous Brand.
Acting as a sole export base of JN series ATVs, FLT series mini bikes, dirt bikes in China, we are able to supply various kinds of ATVs from 50cc to 250cc. Meanwhile we are to develop more models to 300cc - 650cc as next step, for which a famous abroad company will supply the engines to assure the quality.
For details, please view our webpage. Our products have the best quality in China.Especially our JN125/JN125DA, JN250 ATV, adopting liquid-cooled engine with 200 hours constant power-take-off, increasing 20 percent power, double life-span than the air cooled, using hydraulic disc. All of these features lead to the unique of our products.
For any commercial or technical question, please feel free to contact me.
Acting as a sole export base of JN series ATVs, FLT series mini bikes, dirt bikes in China, we are able to supply various kinds of ATVs from 50cc to 250cc. Meanwhile we are to develop more models to 300cc - 650cc as next step, for which a famous abroad company will supply the engines to assure the quality.
For details, please view our webpage. Our products have the best quality in China.Especially our JN125/JN125DA, JN250 ATV, adopting liquid-cooled engine with 200 hours constant power-take-off, increasing 20 percent power, double life-span than the air cooled, using hydraulic disc. All of these features lead to the unique of our products.
For any commercial or technical question, please feel free to contact me.
