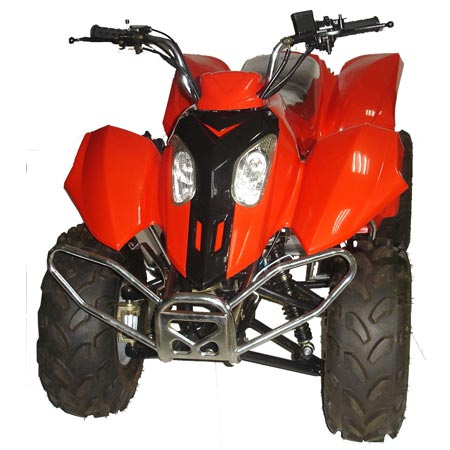

Home China Wangli Group Co., Ltd. Air Cooled ATV (WL-ATV03B1)
| Prod Model: | WL-ATV03B1 |
|---|
Product Description
Art.NO.:WL-ATV03B1Art.NO.:WL-ATV03B
ATV engine type:4-stroke, air cooled
Transmission system:Chain drive, 4-speed, semi automatic
Bore x stroke:52.4 x 49.5mm
Piston displacement:107 ml
Max power (kW/r/min):5.5/8, 000
Max torque (N.M./r/min):6.5/5, 750
Starting system:Electric starter
Min turning radius:2, 400mm
Ground clearance:100
Brake:Front and rear by drum
Parking brake:Mechanical lock
Tire:Front 19 x 7-8/2.9Psi;Rear 18 x 9.5-8/2.9Psi
Ignition type:C.D.I
Fuel tank capacity:7.8L
Suspension:Front double swing arm
Rear mono shock
Battery:12V, 7Ah
Max load capacity:95kg
Engine oil capacity:0.95L
Gear oil capacity:0.12L
Auto lubrication, single cylinder
Wheelbase:1, 040mm
ATV size (L x W x H):1455*845*740MM
Container QTY:66pcs/40'HQ
Available color:Red, blue, green, black, yellow etc
About China Wangli Group
At China Wangli Group, we design and manufacture ATVs, electric scooters/ bicycles, gas-powered scooters, anti-theft locks and other security products.
R&D Capability
Work with us and you won't have to wait long for your samples. At China Wangli, we have more than 100 engineers and designers ready to give your OEM projects the attention they deserve. Send us your drawings and we'll finish your prototypes in just 20 days -- 10 days faster than other mainland China suppliers. You can also have a look at the two new models that we create every month.
Large Output
Our 300, 000-square-meter factory is ISO 9001: 2000-certified. With 4, 000 employees and 25 production lines, we turn out 6, 000 ATVs, 100, 000 pocket bikes, 50, 000 dirt bikes and 50, 000 mini choppers monthly. We source fittings with CE, GS and UL approvals from local suppliers, and our proximity to major air and sea ports helps us to deliver your orders in just 15 days.
Export Markets
We export mainly to the US and Europe. To save you time and money, we provide spare parts with every order -- including wheels, controllers, chargers and handles.
Inquire Today
Browse our showroom to see what we have for you and then contact us today.
At China Wangli Group, we design and manufacture ATVs, electric scooters/ bicycles, gas-powered scooters, anti-theft locks and other security products.
R&D Capability
Work with us and you won't have to wait long for your samples. At China Wangli, we have more than 100 engineers and designers ready to give your OEM projects the attention they deserve. Send us your drawings and we'll finish your prototypes in just 20 days -- 10 days faster than other mainland China suppliers. You can also have a look at the two new models that we create every month.
Large Output
Our 300, 000-square-meter factory is ISO 9001: 2000-certified. With 4, 000 employees and 25 production lines, we turn out 6, 000 ATVs, 100, 000 pocket bikes, 50, 000 dirt bikes and 50, 000 mini choppers monthly. We source fittings with CE, GS and UL approvals from local suppliers, and our proximity to major air and sea ports helps us to deliver your orders in just 15 days.
Export Markets
We export mainly to the US and Europe. To save you time and money, we provide spare parts with every order -- including wheels, controllers, chargers and handles.
Inquire Today
Browse our showroom to see what we have for you and then contact us today.
