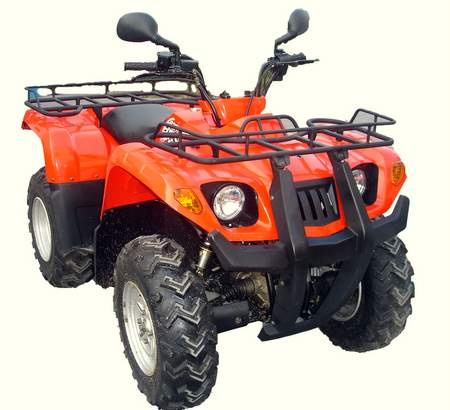

Air-Cooled, 4-Stroke Yamaha JV Engine 400cc ATV with EEC (400ATV-3)

Specifications

Prod Model:	400ATV-3

Product Description

Features:
Type: QY400ATV 4 x 4WD Utility ATV with Yamaha Jv Engine

Specifications:
1) Engine type: Single cylinder, air-cooled, 4-stroke
2) Power: 16kW/6, 500rpm
3) Max. Torque: 26N. M/5, 000rpm
4) Min. Ground clearance: 100mm
5) Wheel base: 1, 240mm
6) Fuel tank capacity: 6. 6L
7) Transmission mode: Axle
8) Start mode: Electric/manual
9) Tires:
A) Front wheels: 25 x 8-12
B) Rear wheels: 25 x 10-12
10) Max. Speed: 75km/h
11) Break type (F / R): Disc / drum
12) Power source: 12V, 20Ah
13) Height of seats: 860mm
14) Dry weight: 135kg
15) Load capacity: 220kg
16) Climbing degree: 22
17) Front hanging: Double arm-swing
18) Rear hanging: Integral
19) Cylinder size: 83 x 71. 6mm
20) Displacement: 387. 4ml
21) Transmission: 5 gears with one reverse gear, one neutral-gear, automatic clutch
22) Min. Turning radius: 2, 900mm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Engine oil: 2. 9L
26) Gear oil:
A) Front tank: 0. 4L
B) Rear tank: 0. 25L
27) Max. Number of riders: 2
28) Lubrication: Press splash
29) Compression proportion: 8. 7: 1
30) Gas cylinder number: 1
31) Product dimensions (L x W x H): 2, 100 x 1, 125 x 1, 175mm

Outer packing:
Carton dimensions: 2, 150 x 1, 160 x 880mm

Conveyance:
Qty/20' GP: 10 units
Qty/40' GP: 22 units
Qty/40' HQ: 33 units
