Specifications
Prod Model: |
QW-DB-03B |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wheel Size: |
Front: 12 Inches & Rear: 10 Inches |
Optional Parts: |
Trumpet, 3m Paster, Loncin/Lifan Engine |
Starting System: |
Kick Start and Electric Start |
Certification: |
CE |
Engine: |
4 Stroke |
Displacement: |
51-125CC |
Condition: |
New |
Fuel: |
Gas / Diesel |
Cylinder Quantity: |
1 |
Product Description

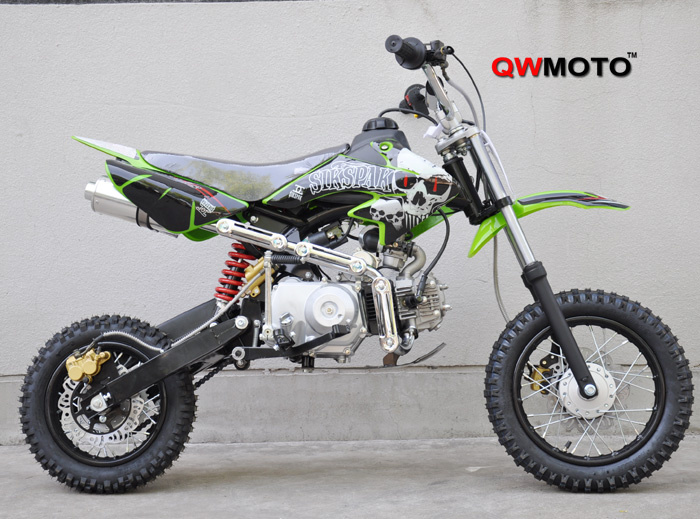

90CC 110CC Pit Dirt Bike CE
Model No: QW-DB-03B
Engine: 110cc, Single cylinder, 4 stroke, air cooled,
Dispacement: 107ml
Compression ratio: 9.0: 1
Bore * stroke: 52.4x49.5
Max Power: 18/7000kw/(r/min)
Transmission: Chain drive auto clutch
Starting system: Electric Start
Ignition: C. D. I
Battery: 12V 4.5AH
Tire: Front 2.5-12 Rear 3.0-10
Petrol tank volume: 2.8(Unleaded Pretol 90 above)
Max load capacity: 125kgs
Brake system: Hydraulic disc brake
Suspension: Front hydraulic shocks, rear mono shock
Dimension: 1530mm(L)*7100mm(W)*960mm(H)
Wheelbase: 320mm
Seat height: 700mm
Dry weight: 60 kg Gross weight: 68 kg
Carton Size: 1370mm(L)*38mm(W)*650mm(H)
Conveyance Qty:
75pcs/20FT, 198pcs/40'HQ
Colors available: Red/black/green/blue/yellow etc...
